COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map

« return to previous page

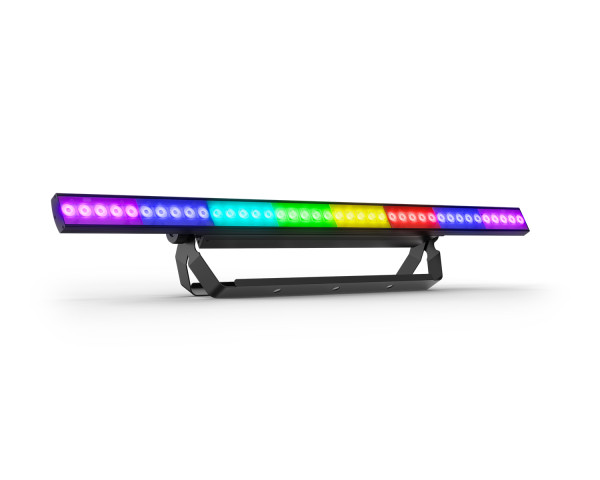

CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Main Image
CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Image 1
CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Image 2
CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Image 3
CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Image 4
CHAUVET DJ COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map - Image 5
Price:
RRP: £264.00 inc VAT
Code:
CHACSPIXILS
Manufacturer Code:
COLORSTRIPPIXILS
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
  • ILS compatibility for use in the ILS ecosystem
  • Create dazzling effects by linking multiple units together to make runway chases

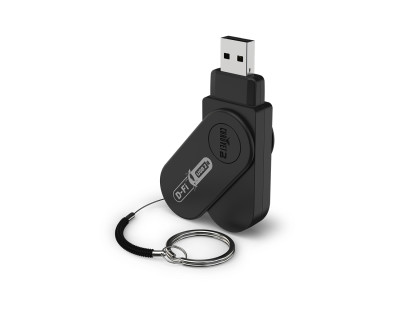

  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Create amazing animations and video effects with individual LED control
  • Ideal for quiet applications due to silent operation and no moving parts
Share:

COLORstrip PiX ILS Linear LED Batten 40x2W RGB LEDs w/ Pixel Map

Create standout event visuals with COLORstrip PiX ILS. This strip light produces wash light and eye candy effects like you’ve never seen before thanks to its custom lenses. It has 40 tri-colour LEDs (Red, Green, Blue). ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Master the beauty and power of colour with this innovative fixture.

Product Features

  • Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
  • ILS compatibility for use in the ILS ecosystem
  • Create dazzling effects by linking multiple units together to make runway chases
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Create amazing animations and video effects with individual LED control
  • Ideal for quiet applications due to silent operation and no moving parts
  • Wireless, non-DMX operation is available with the optional IRC-6 remote
  • Easily transports in the optional CHS-60 VIP Gear Bag

Product Specifications

  • DMX Channels:  3, 8, 120, 122
  • DMX Connectors:  3-pin XLR
  • Light Source:  40 LEDs (tri-color) 2 W, (0.8A), 50,000 hours life expectancy.
  • Strobe Rate:  0 to 20 Hz
  • Beam Angle:  14°
  • Field Angle:  24°
  • Illuminance:  4,967 lux @ 2 m
  • Lumens:  1,491
  • Power Linking:  7 units @ 120 V; 10 units @ 230 V
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    • 79 W, 1.2 A @ 120 V, 60 Hz
    • 77 W, 0.8 A @ 230 V, 50 Hz
  • Weight:  6.2 lb. (2.8 kg)
  • Size:  38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
  • Approvals:  CE, ROHS
  • Cable Length:  5 ft (1.52 m)
  • Bracket Mounting Hole:  13mm
  • Optional Controllers:  IRC6, ILS Command

What's in the Box?

  • COLORstrip Pix ILS
  • Power cord
  • Quick Reference Guide
