Control 126W 6.5" 2-Way In-Wall Loudspeaker 50W White

« return to previous page
Clearance

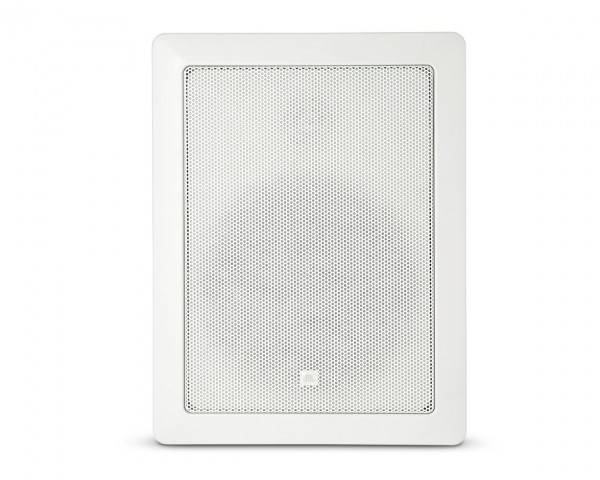

JBL Control 126W 6.5 2-Way In-Wall Loudspeaker 50W White - Main Image
JBL Control 126W 6.5 2-Way In-Wall Loudspeaker 50W White - Image 1
JBL Control 126W 6.5 2-Way In-Wall Loudspeaker 50W White - Image 2
JBL Control 126W 6.5 2-Way In-Wall Loudspeaker 50W White - Image 3
Price:
RRP: £348.00 inc VAT
Code:
JBLC126W
Manufacturer Code:
JBL0586
Brand:
JBL

Quantity required:

Main Features

  • 165mm polymer-coated aluminum-cone woofer with pure butyl rubber surround
  • 25mm pure-titanium dome lowdiffraction swivel aimable titanium tweeter
  • High-slope crossover for natural midrange sound
  • Extended bandwidth performance of 38 Hz - 20 kHz
  • 50w version
  • Screw-down Euroblock-type connector.
Share:

Control 126W 6.5" In-Wall Speaker 50W 8ohm

The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Product Features

  • Components:
    • 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround. :
    • 25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 38 Hz – 20 kHz.
  • 50 W continuous (100 W program, 200 W peak) power handling (126 W).

Product Specifications

General

  • Frequency Range: 38 Hz - 20 kHz (-10 dB)
  • Power Capacity:
    • 200 W Peak
    • 100 W Continuous Program Power
    • 50 W Continuous Pink Noise
  • Sensitivity: 88 dB SPL, 1W, 1 m (3.3 ft)
  • Nominal Impedance: 8 ohms
  • Low Frequency: 165mm (6.5 in) polymer-coated aluminum cone.
  • High-Frequency: 25mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
  • Terminations: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
  • Crossover Network: 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.

Physical & Dimensions

  • Optimum Air Cavity Behind Speaker: 20 to 40 liters (0.7 to 1.4 cu ft)
  • Outside Height: 280mm
  • Outside Width: 215mm
  • Outside Depth: 105mm
  • Front of Wall to Back of Speaker: 99mm
  • Maximum Wall Thickness: 32mm (1.25 in)
  • Height: 246mm
  • Width: 181mm
  • Net Weight (ea): 2.1 kg (4.5 lb)
  • Shipping Weight (ea): 126 W: 4.8 kg (10.5 lb)

What's in the Box?

  • 1 Cutout Template
  • 1 Paint Shield

Product Downloads
