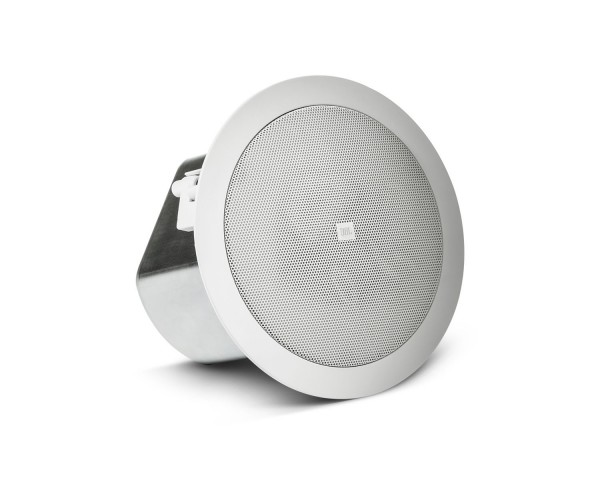

Control 12C/VA 3" Full-Range Ceiling Loudspeaker 20W EN54 White

Product Features

• 76 mm (3 in) full-range driver
• EN 54-24 Compliant for Life Safety Applications
• Blind-mount backcan for quick and easy install
• Combined 70V/100V and low impedance direct operation
  • 20 Watts at 8Ω nominal setting
  • 15W multi-tap at 70V/100V
• 68 Hz – 17 kHz bandwidth with wide 130° coverage
• Finish: White

Product Specifications

General

• Frequency Response (-10dB):  68 Hz – 17 kHz
• Frequency Response (±3 dB):  95 Hz – 15 kHz
• Power Capacity (at low-Z):
  • IEC System Long-Term Ratings (low-Z direct):
    • 40 Watts Continuous Program Power
    • 20 Watts Continuous Pink Noise (80W peak), 100 hr
• Rated Noise Power:  15W (15W tap)
• Rated Noise Voltage:  70V/100V (with 70V/100V tap settings)
• Sensitivity (1W, 1m):  84 dB (1kHz - 16 kHz)
• EN54 Sensitivity (@ 4m):  72 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
• Coverage Angle:  130° conical coverage (1 kHz - 16 kHz)
• Coverage Angels(by Frequency)Conical (Vertical & Horizontal):  500 Hz: 180°1000 Hz: 175°2000 Hz: 170°4000 Hz: 160°
• Reference Axis:  Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
• Directivity Factor (Q):  9.8
• Directivity Index (DI):  7.4 dB
• Maximum SPL (1m):
  • 97 dB (low-impedance, 103 dB peak)
  • 94 dB (top 70V/100 tap)
  • EN54: 84 dB (4m, top 70/100V tap)
• Impedance:  8 ohms (in direct/bypass setting)
• Transformer Taps:  15W, 7.5W, 3.8W @ 70V or 100V (plus 1.9W @ 70V only)
• Fuse:  Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC
• Drivers:  76 mm (3 inch) with polypropylene cone, butyl rubber surround, anodized aluminium voice coil former, high temperature voice coil
• Connections:  Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
• Gland Nut/Strain Relief:  Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)
• Materials:  ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
• Safety Agency:
  • EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485)
  • Compliant with BS5839/8
  • UL1480, UL2043, NFPA90 & NFPA70
  • Suitable for use in air handling spaces, Signalling Speaker
  • rated IP-21 per IEC529/60529
  • Transformer UL registered per UL1876
  • ROHS, C-tick N108, CE compliant
  • Baffle meets UL94-V0 and UL94-5VB flammability rating
  • In accordance with IEC60849/ EN60849 systems

Physical

• Dimensions (H x W x D):  196 mm diameter x 174 mm from back of baffle to back of gland nut (7.7 in diameter x 6.9 in in depth)
• Ceiling Cutout Size:  Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range:  Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
• Safety Seismic Attachment:  One point, top surface
• Net Weight:  1.6 kg (3.5 lbs, one speaker)
• Shipping Weight:  6.7 kg (14.7 lbs, pair in master carton)
• Input Connectors:  Ceramic block with brass inserts
• Colour:  White
• Backcan:  formed steel (included "blind-mount")
• Baffle/Rim:  ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
• Plenum Usage:  Yes, backcan included

What's in the Box?

• Control 12C/VA Ceiling Loudspeaker
• C-ring support backing plate
• 2 tile support rails (for 2 ft or 600 mm tile spans)
• Cutout template
• Paint shield
• Grille
