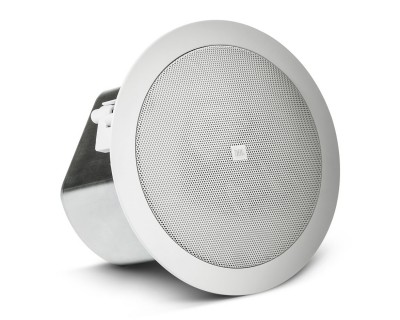

JBL Control 19CST 8 In-Ceiling Subwoofer 100W 100V - Main Image

JBL Control 19CST 8 In-Ceiling Subwoofer 100W 100V - Image 1

JBL Control 19CST 8 In-Ceiling Subwoofer 100W 100V - Image 2

JBL Control 19CST 8 In-Ceiling Subwoofer 100W 100V - Image 3

Price:: RRP: £498.00 inc VAT
Code:: JBLC19CST
Manufacturer Code:: JBL0092
Brand:: JBL

Main Features

Unique Nested Chamber design and Linear
Long excursion 200 mm (8 in) driver
Packaged with grille, backcan and tile rails for fast
Simple installation and wire connection method
Packaged with grille, backcan and tile rails
Removable locking connector with screw-down terminals

Control 19CST Closed Ceiling Subwoofer Round 100V/60W

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Product Features

Unique Nested Chamber™ design and Linear
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast
Simple installation and wire connection method.

Product Specifications

General

Frequency Range: 42 Hz - 200 Hz
Power Capacity: 200 W Continuous Program Power
Transformer Taps:
- 70 V: 75 W, 30 W, 15 W & 7.5 W
- 100 V: 75 W, 30 W, & 15 W
Nominal Coverage Angle: 180° conical coverage
Rated Maximum SPL: 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
Nominal Impedance: 8 ohms
Low Frequency: 200mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Terminations: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating: In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.

Physical & Dimensions

Height: 345mm
Diameter: 345mm
Front of Ceiling Tile to Back of Backcan: 318mm
Cutout Size: 305mm
Net Weight (ea): 6.3kg (14 lb)
Shipping Weight (pair): 14.3 kg (32 lb)

What's in the Box?

1 C-shaped Support Backing Plate
2 Tile Support Rails (fits both 2 x 4 ft or 600 x 1200mm tiles)
1 Cutout Template
1 Paint Shield
1 Removable Locking Wiring Connector
