Control 24CT 4" 2-Way Ceiling Loudspeaker 100V White

« return to previous page

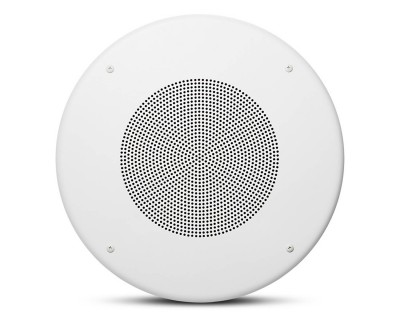

JBL Control 24CT 4 2-Way Ceiling Loudspeaker 100V White - Main Image
JBL Control 24CT 4 2-Way Ceiling Loudspeaker 100V White - Image 1
JBL Control 24CT 4 2-Way Ceiling Loudspeaker 100V White - Image 2
JBL Control 24CT 4 2-Way Ceiling Loudspeaker 100V White - Image 3
JBL Control 24CT 4 2-Way Ceiling Loudspeaker 100V White - Image 4
Price:
RRP: £258.00 inc VAT
Code:
JBLC24CT
Manufacturer Code:
JBL0099
Brand:
JBL

Quantity required:

Main Features

  • Coaxially mounted 100mm woofer with butyl rubber surround
  • 19mm titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers installed
  • SonicGuard overload protection
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Share:

Control 24CT 4" 2-Way Closed Ceiling Speaker White 100V/30W

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Product Features

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.
  • Wide coverage allows fewer speakers, reducing the cost of
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Product Specifications

General

  • Frequency Range: 80 Hz - 20 kHz
  • Power Capacity: 80 W Continuous Program Power; 40 W Continuous Pink Noise
  • Transformer Taps:
    • 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
    • 100 V: 30 W, 15 W, & 7.5 W taps
  • Nominal Coverage Angle: 130° conical coverage
  • Directivity Factor (Q): 2.4 dB averaged 500 Hz to 4 kHz
  • Directivity Index (DI): 3.8 dB averaged 500 Hz to 4 kHz
  • Rated Maximum SPL: 102 dB @ 1 m (3.3 ft)
  • Nominal Impedance: 16 ohms (Min Z 16.1 ohms @ 320 Hz)

Physical & Dimensions

  • Depth: 100mm
