Control 26CT 6.5" Coaxial Ceiling Loudspeaker 75W 100V

« return to previous page
Clearance

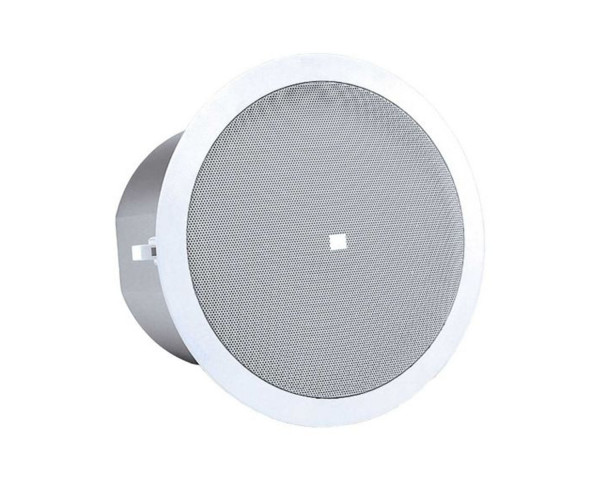

JBL Control 26CT 6.5 Coaxial Ceiling Loudspeaker 75W 100V - Main Image
Price:
RRP: £342.00 inc VAT
Code:
JBLC26CT
Manufacturer Code:
JBL0109
Brand:
JBL

Quantity required:

Main Features

  • Coaxially mounted 165 mm woofer with butyl rubber surround
  • 19 mm titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • SonicGuard overload protection
  • Allows higher operational levels and improved system reliability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Share:

Control 26CT 6.5" 2-Way Ceiling Speaker 100V/60W 252mm

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.

Product Features

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Product Specifications

General

  • Frequency Range: 75 Hz - 20 kHz
  • Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
  • Transformer Taps: 70 V: 60 W, 30 W, 15 W, & 7.5 W
  • Nominal Coverage Angle: 110°
  • Directivity Index (DI): 4.6 dB
  • Rated Maximum SPL: 106 dB SPL @ 1m (3.3 ft)
  • Low Frequency: 165 mm (6.5 in)
  • High Frequency: 19 mm (.75 in) titanium
  • Terminations: Screw locking barrier strip

Physical & Dimensions

  • Height: 210mm
  • Diameter: 252mm
  • Weight: 4.2kg
