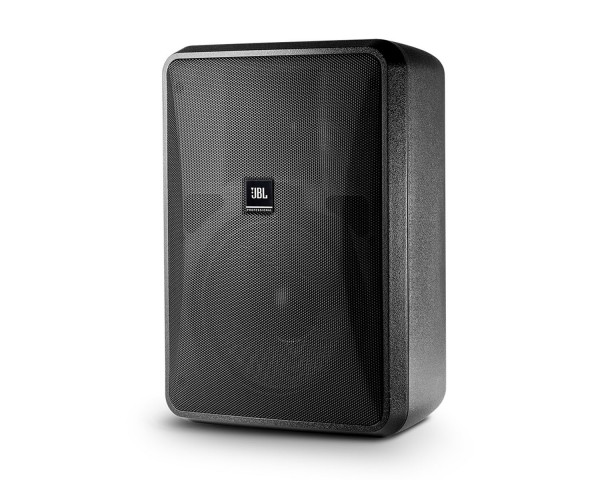

Control 28-1L 8" High-Output 2-Way Loudspeaker 120W Black

Product Features

• 8” woofer with woven fiberglass cone
• 1” PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 120 Watt power handling (240 Watt program)
• High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.

Product Specifications

General

• Frequency Response (-10dB):  45 Hz to 20 kHz
• Frequency Response (±3 dB):  62Hz - 16 kHz
• Power Rating:  240 W Continuous Program (2 hrs)
• Maximum Input Voltage:  27.5 V RMS (2 hrs), 55.0 V peak
• Maximum SPL (1m):  112 dB ave. Continuous Pink Noise (118 dB peak)
• Sensitivity (1W, 1m):  91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
• Coverage Angle:  100° x 100° *Coverage angle (-6 dB) average between 600 Hz and 12 kHz.
• Directivity Factor (Q):  7.3 (averaged 1kHz – 16kHz)
• Impedance:  8 ohms
• Crossover Type:  2nd order low-pass, 1st order high-pass, plus conjugate shaping
• Recommended Protective High-Pass:  45 Hz high-pass (24 dB/oct)
• Drivers:
  • LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
• Enclosure:  High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
• Grille:  Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
• Outdoor Capability:  IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
• Safety Agency:  ROHS-compliant

Physical

• Colors:  Black (RAL9004) or white (-WH, RAL9016)
• Dimensions (H x W x D):  386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
• Net Weight (each):  6.2 kg (13.5 lbs)
• Shipping Weight:  13.4 kg (29.5 lbs) pair-packed (for 2 speakers)

What's in the Box?

• Control 28-1L
• InvisiBall™ wall-mounting system
• 6 mm x 180 mm hex key
