Control 322C 12" Open-Back Coaxial Ceiling Speaker 400W | JBL | Leisuretec

« return to previous page

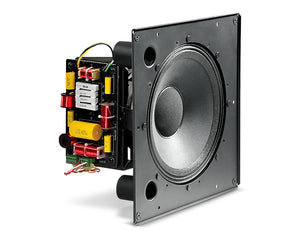

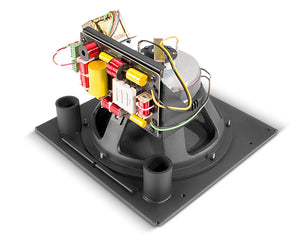

JBL Control 322C 12 Open-Back Coaxial Ceiling Speaker 400W - Main Image

JBL Control 322C 12 Open-Back Coaxial Ceiling Speaker 400W - Image 1

JBL Control 322C 12 Open-Back Coaxial Ceiling Speaker 400W - Image 2

Price:: RRP: £1,134.00 inc VAT
Code:: JBLC322C
Manufacturer Code:: JBL0641
Brand:: JBL

Main Features

JBl Control 322C Ceiling Speaker
Consistent 90deg broadband pattern control
12" woofer with 3" voice-coil cone
Extraordinary clarity for speech and vocals
Extended frequency response for music
Advanced high-slope crossover network

Control 322C 12" Coax Ceiling Speaker 250W 8ohm

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Product Features

Consistent 90° broadband pattern control.
Components
- Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
- Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

Product Specifications

General

Frequency Range (-10 dB): 32 Hz – 20 kHz
Long-Term System Power Rating:
- 400 W (1600 W peak), 2 hrs
- 250 W (1000 W peak), 100 hrs
Sensitivity (2.83V@ 1m):
- 95 dB measured half-space
- 100 dB computed for competitive comparison
Frequency Response (±3 dB): 48 Hz – 19 kHz
Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
Directivity Factor (Q): 9 (1k - 16kHz)
Directivity Index (DI): 9.5dB (1k - 16kHz)
Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance: 8 ohms

Physical & Dimensions

Height: 366mm
Width: 366mm
Depth from back of Baffle: 223mm

Product Downloads

Control 322C Spec Sheet
