Control HST 5-1/4

Price:: RRP: £600.00 inc VAT
Code:: JBLCONHSTW
Manufacturer Code:: JBL1659
Brand:: JBL

Main Features

Provides extremely wide horizontal coverage that approaches 180°, covering a greater area with fewer speakers.
Reduces the primary wall reflection, resulting in a flat frequency response and consistent sound character at all listening positions.
Components: 5-1/4" CMMD woofer and two splayed ¾" fluid-cooled tweeters.
100 Watt power handling in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 50 Hz – 20 kHz.
Finish: White

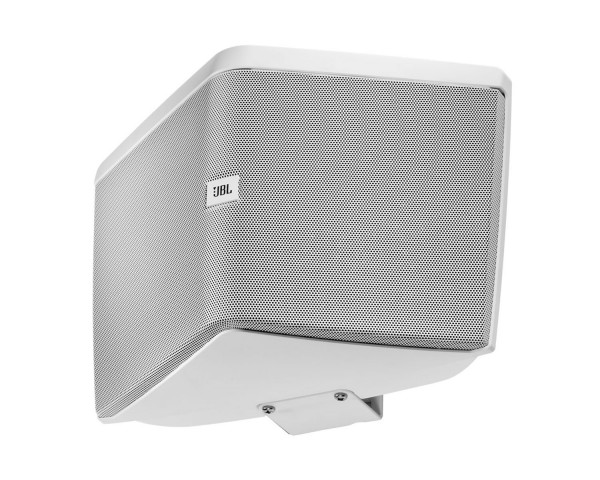

Control HST 5-1/4" Wide Coverage Speaker Dual Tweeters - White

The Control HST utilises JBL’s patent-pending Hemispherical Soundfield Technology™ to achieve extremely wide coverage of the listening space along with eliminating the primary wall reflection that tends to cause inconsistent sound when speakers are attached to a wall. The wide hemispherical soundfield covers from wall to wall, allowing a single speaker to provide high-fidelity full-range sound to a large listening area. This can reduce the number of speakers needed for covering a space, lowering the overall cost for a sound system.

Product Features

HST Hemispherical Soundfield Technology™ (patent-pending):
- Provides extremely wide horizontal coverage that approaches 180°, covering a greater area with fewer speakers.
- Reduces the primary wall reflection, resulting in a flat frequency response and consistent sound character at all listening positions.
Components: 5-1/4" CMMD woofer and two splayed ¾" fluid-cooled tweeters.
100 Watt power handling in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 50 Hz – 20 kHz.
Finish: black or white (-WH) colour.

Product Specifications

General

Frequency Response (-10dB): 50 Hz – 20 kHz
Frequency Response (±3 dB): 68 Hz – 18 kHz
Coverage Angle: 180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
Directivity Factor (Q): 5.4 (1 k – 16 kHz)
Directivity Index (DI): 7.2 dB (1 k – 16 kHz)
System Power Rating (IEC): 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity (1W, 1m): 88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m): Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network: 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance: 8 ohms
Transformer Taps: 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Drivers:
- LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
- HF: Two splayed tweeters with CMMD-treated aluminium diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Input Connectors: Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Outdoor Capability: IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.

Physical

Dimensions (H x W x D): 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colours: Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight (each): 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories: U-bracket
Enclosure: Fiberglass-reinforced ABS
Grille: Aluminium grille, painted to match cabinet
