CS3082 8x2" +2x1" 2-Way Aluminium Column Loudspeaker 30W 100V Wht

« return to previous page

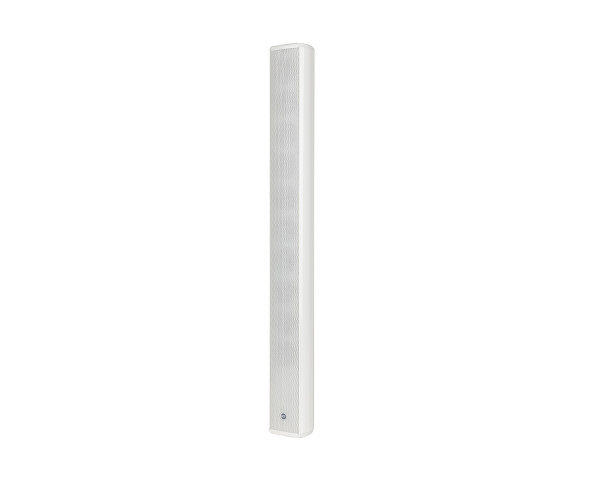

RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Main Image
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 1
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 2
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 3
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 4
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 5
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 6
RCF CS3082 8x2 +2x1 2-Way Aluminium Column Loudspeaker 30W 100V Wht - Image 7
Price:
RRP: £229.20 inc VAT
Code:
RCFCS3082
Manufacturer Code:
13000232
Brand:
RCF

Quantity required:

Main Features

  • Ideal for speech reproduction, shape designed to enable corner installation
  • Music power/RMS: 60/30W
  • Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
  • Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
  • Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
  • 8 Ohm input that can be selected on the terminal block
Share:

CS3082 Aluminium Speaker Column 8x2" 100V/16Ω 20W

CS 3082 is formed in an ultra slimline design offering minimal visual impact. Easy installation can be achieved with either the supplied ‘L’ shaped wall brackets or the optional AC WM-CS swivel bracket, which allows the installer to angle the speaker to suit. The new CS Slimline Columns have been optimised for speech reproduction using extended range 2 inch speakers and 1 inch tweeters.

Product Features

  • Ideal for speech reproduction, shape designed to enable corner installation
  • Music power/RMS: 60/30W
  • Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
  • Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
  • Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
  • 8 Ohm input that can be selected on the terminal block
  • Audio connection on screw terminal block

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  200 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  106 dB
  • Horizontal coverage angle:  180°
  • Vertical coverage angle:  30°
  • System Sensitivity:  91 dB

Power section

  • Nominal Impedance:  8 ohm
  • Power Handling:  30 W RMS
  • Peak Power Handling:  120 W PEAK
  • Recommended Amplifier:  60 W

Transducers

  • Dome Tweeter:  2 x 1.0''
  • Woofer:  8 x 2.0''

Input/Output section

  • Input connectors:  Screw Terminals
  • Output connectors:  Screw Terminals
  • Constant Voltage Transformer:  100 V
  • Power selection 1:  30 W - 333 ohm
  • Power selection 2:  20 W - 500 ohm
  • Power selection 3:  10 W - 1000 ohm

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Aluminium
  • Hardware:  Wall mount bracket
  • Grille:  Steel
  • Colour:  White - RAL 9016

Physical & Dimensions

  • Height:  670 mm / 26.38 inches
  • Width:  78 mm / 3.07 inches
  • Depth:  66 mm / 2.6 inches
  • Weight:  2.7 kg / 5.95 lbs
