CS64BS 6W Widerange Speaker EN54

« return to previous page

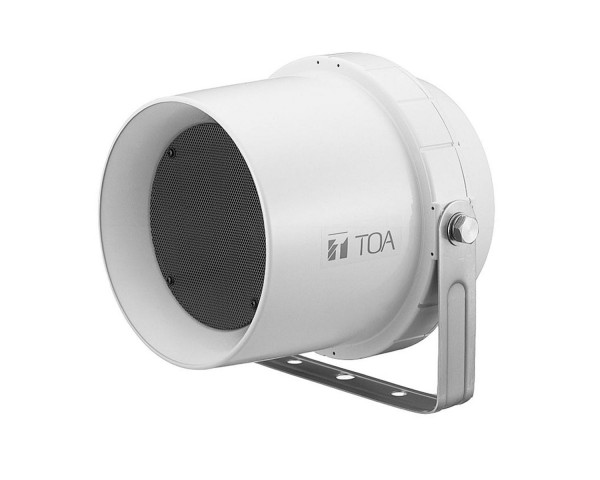

TOA CS64BS 6W Widerange Speaker EN54 - Main Image
Price:
RRP: £114.00 inc VAT
Code:
TOACS64BS
Manufacturer Code:
CS-64BS
Brand:
TOA

Quantity required:

Main Features

  • Round projection speaker for outdoor use
  • Lightweight and rugged construction
  • Exponential horn for improved directivity
  • Complete with stainless steel bracket
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8
Share:

CS64BS 6W Wide range Speaker EN54

The CS-64BS is the voice alarm certification product. The CS-64BS Wide range speaker features an ABS resin enclosure and stainless steel bracket for all-weather durability. It is comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker, providing clear and highly directional sound reproduction.

Product Features

  • Round projection speaker for outdoor use
  • Lightweight and rugged construction
  • Exponential horn for improved directivity
  • High SPL
  • Complete with stainless steel bracket
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Product Specifications

  • Frequency response:  130 Hz - 13 kHz
  • Connection:  Ceramic screw terminals, thermal fuse, external connection box, 5-wire BS-compliant
  • Sensitivity (1 W, 1 m)
    • 96 dB (330 Hz - 3.3 kHz, pink noise)
    • 93 dB (1 W, 1 m, at 100 Hz to 10 kHz pink noise)
    • 81 dB (1 W, 1 m, at 100 Hz to 10 kHz pink noise)
  • Maximum sound pressure level (1 m) (value):  100 dB
  • Speaker Component: 12 cm cone type (treated for splash proof)
  • Rated input (High Impedance):  6W
  • Tappings:  100 V : 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W)
  • Operating temperature:  -20 ºC to +55 ºC (-4 °F to 131 °F)
  • Finish:  ABS resin, paint, papyrus white (RAL 9018 or equivalent), Bracket: Stainless steel
  • Dimensions:  233 x 224 x 249 mm (W x H x D)
  • Weight:  1.7 kg

What's in the Box?

  • 1x Terminal cover
