CSA1300Z 1x300W Commercial Power Amp with 100V Line 2U Haf Rack

« return to previous page

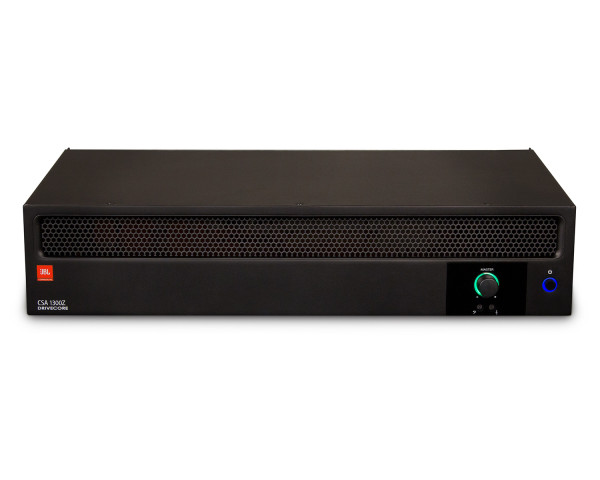

JBL CSA1300Z 1x300W Commercial Power Amp with 100V Line 2U Haf Rack - Main Image
JBL CSA1300Z 1x300W Commercial Power Amp with 100V Line 2U Haf Rack - Image 1
JBL CSA1300Z 1x300W Commercial Power Amp with 100V Line 2U Haf Rack - Image 2
Price:
RRP: £1,080.00 inc VAT
Code:
JBLCSA1300Z
Manufacturer Code:
JBL1778
Brand:
JBL

Quantity required:

Main Features

• 1 channel X 300W output
• Built-in 70V and 100V
• Space-saving 2 RU design
• Sleep mode disable function
• Energy-efficient amplifier
• Sleek industrial look with illuminated rings making knobs easy to see and use

Share:

CSA1300Z 1x300W Commercial Power Amp with 100V Line 2U Haf Rack

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

The efficient performance of Crown’s DriveCore™ Technology continues to set new standards in commercial power amplifier technology.

Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls.

And with HARMAN’s GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.

Product Features

• 1 channel X 300W output
• Built-in 70V and 100V
• Space-saving 2 RU design
• Sleep mode disable function
• Energy-efficient amplifier
• Sleek industrial look with illuminated rings making knobs easy to see and use
• Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors

Product Specifications

  • Rated Power: 300W
  • Number of Output Channels: 1
  • Insertion Loss: 1Db maximum
  • Input Sensitivity: Balanced line input 775mV rms ; RCA Mono Sum input: 300Mv RMS
  • Frequency Response: +/- 1.0 Db
  • Total Harmonic Distortion (THD):  <0.5%
  • Signal-to-noise Ratio:  >97 Db
  • Input Impendance (nominal) Euro Block: 20 K-Ohms (balanced); RCA: 10 K-Ohms
  • Maximum Input Level:  +22dBu (Nominal)
  • Crosstalk:  <-70 Db
  • Tone Controls:  Bass +/- @ 100Hz / Treble +/- 12 Db @ 10kHz
  • Nominal AC Line Voltages: 100V, 120V, 220V, 230-240V, 50/60 Hz
  • Operating Temperature/Humidity: 0-35 Degrees Celsius @  95% R.H. (non-condensing)
  • Storage Temperature:  -20 – 80 Degrees Celcius
  • Net Weight: 5.95 KG
  • Dimensions: W: 17.0in D: 10.8in H: 3.5in
  • Shipping Weight: 7.45 Kg
