CSS-BB8x6 8" Backcan for CSS8008/8018 Speakers 6-Pack

« return to previous page

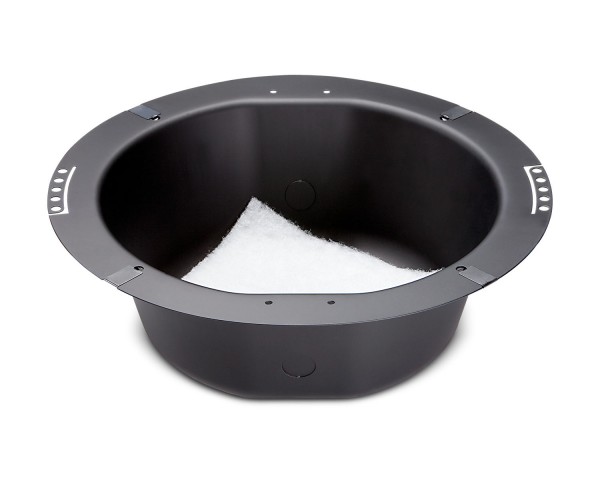

JBL CSS-BB8x6 8 Backcan for CSS8008/8018 Speakers 6-Pack - Main Image
Price:
RRP: £180.00 inc VAT
Code:
JBLCSSBB8X6
Manufacturer Code:
JBL1102
Brand:
JBL

Quantity required:

Main Features

  • Compatibility:  CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
  • Pack of 6 backcan's
  • Included Accessories:  4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
  • Dimensions:  108 deep x 334 diameter mm (4.3 x 13.2 in)
  • Material:  Steel, zinc-plated, powder-coated
  • Finish:  Black
Share:

CSS-BB4x6 Backcan

CSS-BB8x6 8" Backcan for CSS8008/8018 Loudspeaker 6-Pack

Product Features

  • Compatibility:  CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
  • Pack of 6 backcan's
  • Included Accessories:  4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
  • Dimensions:  108 deep x 334 diameter mm (4.3 x 13.2 in)
  • Material:  Steel, zinc-plated, powder-coated
  • Finish:  Black

Product Specifications

  • Compatibility:  CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
  • Dimensions:  108 deep x 334 diameter mm (4.3 x 13.2 in)
  • Bolt Mount Circle:  4 points on 286 mm (11.25 in) diameter
  • Air Space:  4.0 litres (0.15 cu ft)
  • Material:  Steel, zinc-plated, powder-coated
  • Conduit Knockouts:  Five (5) knockouts:4 on sides spaced at 90° and1 at centre of top panel
  • Attachment Points:  4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
  • Safety Agency:  Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signalling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
  • Net Weight (each):  0.87 kg (2.0 lb)
  • Shipping Weight (ea):  1.04 kg (2.3 lb)
  • Included Accessories:  4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
