CVB-W/C Cardioid Condenser Boundary Microphone White

« return to previous page

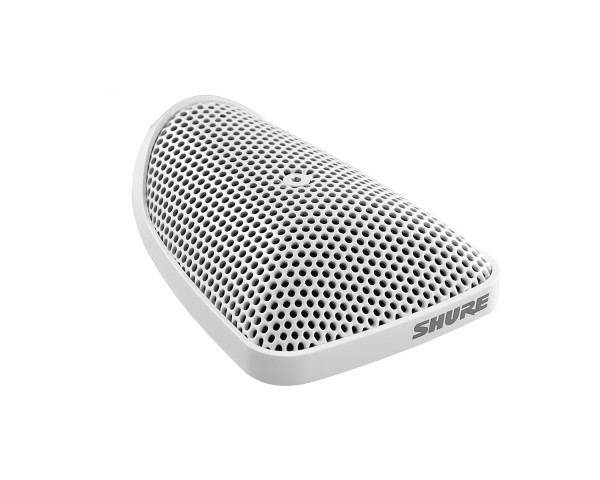

Shure CVB-W/C Cardioid Condenser Boundary Microphone White - Main Image
Shure CVB-W/C Cardioid Condenser Boundary Microphone White - Image 1
Shure CVB-W/C Cardioid Condenser Boundary Microphone White - Image 2
Shure CVB-W/C Cardioid Condenser Boundary Microphone White - Image 3
Price:
RRP: £170.40 inc VAT
Code:
SHUCVBWC
Manufacturer Code:
CVB-W/C
Brand:
Shure

Quantity required:

Main Features

  • Cardioid Polar Pattern
  • White Finish
  • Attached 12 ft XLR cable
  • Commshield® interference immunity
  • Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
  • High resistance to intense nearby radio signals
Share:

CVB-W/C Cardioid Condenser Boundary Microphone White

The Shure Centraverse CVB is a professional boundary electret condenser microphone for use in desktop installed sound reinforcement applications. Available in cardioid and omnidirectional polar patterns and black or white colour options, its low-profile design fits seamlessly within any design aesthetic.

Product Features

  • Cardioid Polar Pattern
  • White Finish
  • Attached 12 ft XLR cable
  • Commshield® interference immunity
  • Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
  • High resistance to intense nearby radio signals

Product Specifications

  • Cartridge Type:  Electret Condenser
  • Frequency Response:  70–16000 Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:  180 Ω
  • Sensitivity (at 1 kHz , open circuit voltage):  –32.5 dBV/Pa(23 mV)
  • Maximum SPL (1 kHz at 1% THD):  120 dB SPL
  • Signal to Noise Ratio (referenced at 94 dB SPL):  67 dB
  • Dynamic Range:  93 dB
  • Self Noise (equivalent SPL, A-weighted, typical):  27 dB SPL
  • Common Mode Rejection (10 Hz to 100 kHz):  >45 dB
  • Preamplifier Output Clipping Level (1% THD):  -7 dBV
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Power Requirements:  11–52 V DC, 2.0 mA
  • Environmental Requirements:  Operating Temperature Range: -18 to 57 °C (0 to 135 °F) Relative Humidity: 0 to 95%
