CVS-C53TB 5.25" 2-Way Ceiling Speaker 40W 8Ω or 24W 100V Black

« return to previous page

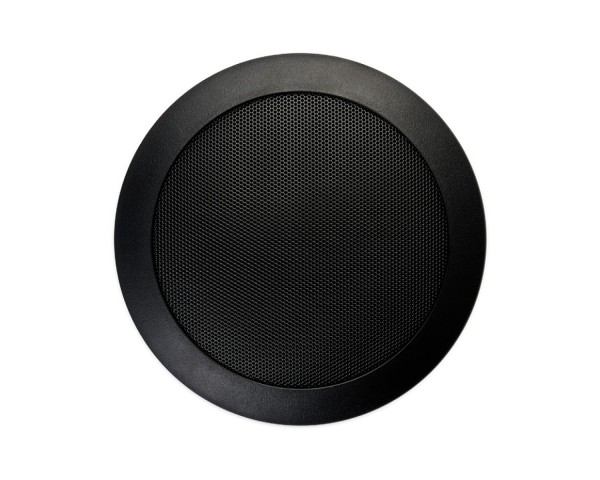

Cloud Contractor CVS-C53TB 5.25 2-Way Ceiling Speaker 40W 8Ω or 24W 100V Black - Main Image
Cloud Contractor CVS-C53TB 5.25 2-Way Ceiling Speaker 40W 8Ω or 24W 100V Black - Image 1
Cloud Contractor CVS-C53TB 5.25 2-Way Ceiling Speaker 40W 8Ω or 24W 100V Black - Image 2
Price:
RRP: £51.60 inc VAT
Code:
CLOCVSC53TB
Manufacturer Code:
CVS-C53TB
Brand:
Cloud Contractor

Quantity required:

Main Features

  • 2-Way Coaxial driver design
  • ½” Mylar dome Tweeter & 5¼” treated paper Woofer
  • Good musical quality and speech intelligibility
  • 100 V-line - 24W, 12W or 6W integral multi-tap transformer
  • Low impedance 8Ω - Max 40W
  • Low profile back can for installation into ceiling voids with limited height
Share:

CVS-C53TB Ceiling Speaker

5¼” Ceiling Speaker, 2-Way Coaxial Open Back 8 ohm, Max 40W or 100v - 24W, 12W, 6W - BLACK

The Cloud CVS Contractor Series is a low-cost range of quality loudspeakers for flush in-ceiling installation. Ideal for background music and announcements in general public areas and buildings where good musical reproduction and high speech intelligibility are required.

Constructed in lightweight ABS plastic with open back, infinite baffle characteristics. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

Product Features

  • 2-Way Coaxial driver design
  • ½” Mylar dome Tweeter & 5¼” treated paper Woofer
  • Good musical quality and speech intelligibility
  • 100 V-line - 24W, 12W or 6W integral multi-tap transformer
  • Low impedance 8Ω - Max 40W
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation

Product Specifications

General

  • Nominal driver diameter
    • CVS-C5:  ¼
    • CVS-C5T:  5¼”
    • CVS-C52T:  5¼”
    • CVS-C53T:  5¼”
    • CVS-C82T:  8”
  • Type
    • CVS-C5:  Dual cone
    • CVS-C5T:  Dual cone
    • CVS-C52T:  2-way coaxial
    • CVS-C53T:  2-way coaxial
    • CVS-C82T:  2-way coaxial
  • Tweeter design
    • CVS-C5:  n/a
    • CVS-C5T:  n/a
    • CVS-C52T:  ½” Mylar dome
    • CVS-C53T:  ½” Mylar dome
    • CVS-C82T:  1” Silk dome
  • Woofer design
    • CVS-C5:  5¼” treated paper, with cloth surround
    • CVS-C5T:  5¼” treated paper, with cloth surround
    • CVS-C52T:  5¼” treated paper, with cloth surround
    • CVS-C53T:  5¼” treated paper, with cloth surround
    • CVS-C82T:  8” treated paper, with cloth surround
  • Frequency Response (-3 dB)
    • CVS-C5:  73 Hz – 20 kHz
    • CVS-C5T:  72 Hz – 20 kHz
    • CVS-C52T:  98 Hz – 20 kHz
    • CVS-C53T:  98 Hz – 20 kHz
    • CVS-C82T:  40 Hz – 20 kHz
  • Frequency Response (-10 dB)
    • CVS-C5:  57 Hz – 20 kHz
    • CVS-C5T:  54 Hz – 20 kHz
    • CVS-C52T:  73 Hz – 20 kHz
    • CVS-C53T:  73 Hz – 20 kHz
    • CVS-C82T:  36 Hz – 20 kHz
  • Crossover frequency
    • CVS-C5:  n/a
    • CVS-C5T:  n/a
    • CVS-C52T:  9 kHz
    • CVS-C53T:  9 kHz
    • CVS-C82T:  6 kHz
  • Driver impedance
    • CVS-C5:  16 ohms
    • CVS-C5T:  8 ohms
    • CVS-C52T:  8 ohms
    • CVS-C53T:  8 ohms
    • CVS-C82T:  8 ohms
  • Sensitivity (1 W @ 1m
    •  CVS-C5:  85 dBA
    • CVS-C5T:  86 dBA
    • CVS-C52T:  88 dBA
    • CVS-C53T:  88 dBA
    • CVS-C82T:  89 dBA
  • Power rating
    • CVS-C5:  10 W
    • CVS-C5T:  10 W
    • CVS-C52T:  20 W
    • CVS-C53T:  20 W
    • CVS-C82T:  25W
  • Max power input
    • CVS-C5:  20 W
    • CVS-C5T:  20 W
    • CVS-C52T:  40 W
    • CVS-C53T:  40 W
    • CVS-C82T:  50 W
  • Transformer taps
    • CVS-C5:  n/a
    • CVS-C5T:  6 W, 3 W, 1.5 W, lo-Z
    • CVS-C52T:  6 W, 3 W, 1.5 W, lo-Z
    • CVS-C53T:  24 W, 12 W, 6 W, lo-Z
    • CVS-C82T:  24 W, 12 W, 6 W, lo-Z

Physical

  • Cutout hole size
    • CVS-C5:  169 mm
    • CVS-C5T:  169 mm
    • CVS-C52T:  169 mm
    • CVS-C53T:  169 mm
    • CVS-C82T:  241 mm
  • Grille type
    • CVS-C5:  Painted steel
    • CVS-C5T:  Painted steel
    • CVS-C52T:  Painted aluminium
    • CVS-C53T:  Painted aluminium
    • CVS-C82T:  Painted aluminium
  • Enclosure: overall dimensions (dia x height)
    • CVS-C5:  8.1” x 3.2” (205 mm x 80 mm)
    • CVS-C5T:  8.1” x 3.2” (205 mm x 80 mm)
    • CVS-C52T:  8.1” x 3.2” (205 mm x 80 mm)
    • CVS-C53T:  8.1” x 3.2” (205 mm x 80 mm)
    • CVS-C82T:  10.7” x 4” (271.5 mm x 100 mm)
  • Finish
    • Black
    • White
