CVS-C83TB 8" Ceiling Speaker 8Ω/100V with Magnetic Grille Black

« return to previous page
Cloud Contractor CVS-C83TB 8 Ceiling Speaker 8Ω/100V with Magnetic Grille Black - Main Image
Cloud Contractor CVS-C83TB 8 Ceiling Speaker 8Ω/100V with Magnetic Grille Black - Image 1
Cloud Contractor CVS-C83TB 8 Ceiling Speaker 8Ω/100V with Magnetic Grille Black - Image 2
Price:
RRP: £104.40 inc VAT
Code:
CLOCVSC83TB
Manufacturer Code:
CVS-C83TB
Brand:
Cloud Contractor

Quantity required:

Main Features

  • 2-Way Premium Coaxial driver design
  • 1” Silk dome Tweeter & 8” PP with rubber surround
  • High quality musical quality and speech intelligibility
  • Magnetic interchangeable Grille in BLACK or WHITE
  • Low impedance 8Ω - Max 50W
  • 100 V-line - 24W, 12W or 6W integral multi-tap transformer
Share:

CVS-C62TB 6.5" 2-Way Ceiling Speaker - Black

6½” Ceiling Speaker, 2-Way Coaxial Open Back 8 ohm, Max 50W or 100v - 24W, 12W, 6W - WHITE or BLACK Magnetic Grille

The Cloud CVS-C62 & CVS-C83 are a more Premium in-ceiling speaker within the Contractor Series and are more specifically designed for high quality music reproduction. They are also suitable for speech and announcements and will find application where a better quality of music audio is desirable.

Constructed in lightweight ABS plastic with open back, infinite baffle characteristics. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

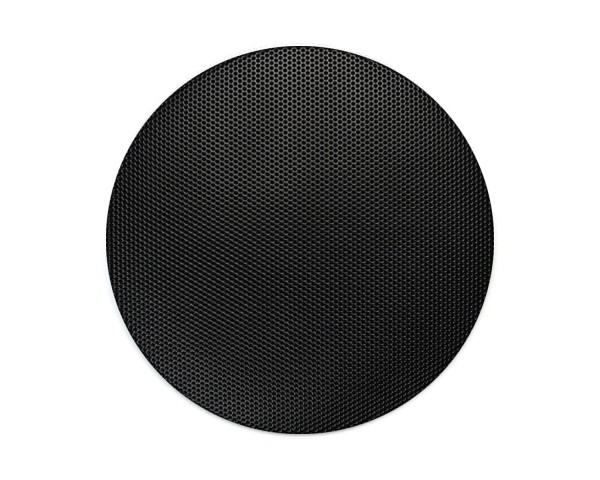

They come with painted steel grille in BLACK or WHITE which attaches magnetically, making for a very easy flush finish to the installation and a very clean appearance.

Product Features

  • 2-Way Premium Coaxial driver design
  • 1” Silk dome Tweeter & 8” PP with rubber surround
  • High quality musical quality and speech intelligibility
  • Magnetic interchangeable Grille in BLACK or WHITE
  • Low impedance 8Ω - Max 50W
  • 100 V-line - 24W, 12W or 6W integral multi-tap transformer
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation

Product Specifications

General

  • Nominal driver diameter
    • CVS-C62T:  6½”
    • CVS-C83T:  8”
  • Type
    • CVS-C62T:  2-way coaxial
    • CVS-C83T:  2-way coaxial
  • Tweeter design
    • CVS-C62T:  1” Silk dome
    • CVS-C83T:  1” Silk dome
  • Woofer design
    • CVS-C62T:  6½” polypropylene cone, with soft rubber surround
    • CVS-C83T:  8” polypropylene cone, with soft rubber surround
  • Frequency Response (-3 dB)
    • CVS-C62T:  45 Hz – 20 kHz
    • CVS-C83T:  45 Hz – 20 kHz
  • Frequency Response (-10 dB)
    • CVS-C62T:  40 Hz – 20 kHz
    • CVS-C83T:  40 Hz – 20 kHz
  • Crossover frequency
    • CVS-C62T:  6 kHz
    • CVS-C83T:  4.2 kHz
  • Driver impedance
    • CVS-C62T:  8 ohms
    • CVS-C83T:  8 ohms
  • Sensitivity (1 W @ 1m
    • CVS-C62T:  88 dBA
    • CVS-C83T:  88 dBA
  • Power rating
    • CVS-C62T:  25 W
    • CVS-C83T:  25W
  • Max power input
    • CVS-C62T:  50 W
    • CVS-C83T:  50 W
  • Transformer taps
    • CVS-C62T:  24 W, 12 W, 6 W, lo-Z
    • CVS-C83T:  24 W, 12 W, 6 W, lo-Z

Physical

  • Cutout hole size
    • CVS-C62T:  205 mm
    • CVS-C83T:  248 mm
  • Grille type
    • CVS-C62T:  Painted steel, magnetically attached
    • CVS-C83T:  Painted steel, magnetically attached
  • Enclosure: overall dimensions (dia x height)
    • CVS-C62T:  224 mm x 90 mm (8.8” x 3.5”)
    • CVS-C83T:  273 mm x 101 mm (10.75” x 4”)
  • Net weight
    • CVS-C62T:  1.6 kg (3.6 lb)
    • CVS-C83T:  2.1 kg (4.7 lb)
