Delta 100 Power Amp NO-DSP with Dante 4x2700W @ 4Ω

« return to previous page

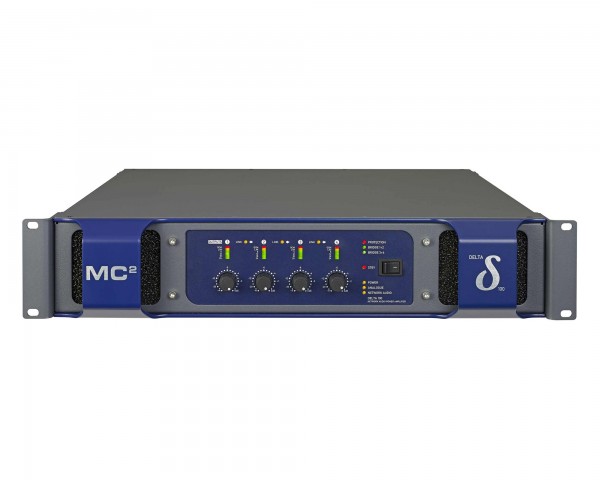

MC2 Audio Delta 100 Power Amp NO-DSP with Dante 4x2700W @ 4Ω - Main Image
MC2 Audio Delta 100 Power Amp NO-DSP with Dante 4x2700W @ 4Ω - Image 1
MC2 Audio Delta 100 Power Amp NO-DSP with Dante 4x2700W @ 4Ω - Image 2
Price:
RRP: £5,902.20 inc VAT
Code:
MC2D100NDD
Manufacturer Code:
D100-ND-Dante
Brand:
MC2 Audio

Quantity required:

Main Features

  • Delta Power Amplifier with Dante (Non-DSP Version)
  • 4 Channels
  • 4x2700W @ 4ohms
  • Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
  • Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
  • All MC² Audio products are covered by a 5 year warranty.
Share:

Delta 100 Power Amplifier NO-DSP with Dante 4x2700W @ 4ohms

Delta Series offers the assurance of MC2’s highest quality audio power amp technology with future proofing via the inclusion of simple to use digital audio networking.

A rear panel switch allows the amplifier to accept either four channels of analogue audio (Non-Dante Model) or pick up four channels of networked audio, via Dante, which is then converted using 24 bit 96kHz DACs.

Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required. Switch back to analogue to use as a powerful traditional quad channel amplifier.

Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.

All MC² Audio products are covered by a 5 year warranty.

Product Features

  • Delta Power Amplifier with Dante (Non-DSP Version)
  • 4 Channels
  • 4x2700W @ 4ohms
  • Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
  • Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
  • All MC² Audio products are covered by a 5 year warranty.

Product Specifications

General

  • Number of channels:  4
  • Output Power: (per channel)
    • 8 ohms:  1400W
    • 4 ohms:  2700W
    • 2.7 ohms:  3700W
    • 2 ohms:  3500W
  • Output Power: (bridged)
    • 8 ohms:  5400W
    • 4 ohms:  7000W
  • THD%: (@1dB below max output)
    • @ 1kHz:  < 0.08%
    • 20Hz to 20kHz:  < 0.1%
  • Gain / Sensitivity:
    • Gain:  26/32dB
    • Sensitivity (for max power):  10.7dBu
    • Frequency Response:  20Hz to 20kHz
      • (+ 0/- 0.5dB)
  • Power Consumption: (< 50W in standby)
    • Nominal @ 240v into 4 ohms:  7.5A
    • Nominal @ 120v into 4 ohms:  15.5A

Physical

  • Dimensions: (2U) (mm)
    • Amplifier:  88(h) x 482(w) x 428(d)
    • Single Box (UK shipping):  230 x 580 x 560
    • Double Box (outside UK):  250 x 610 x 600
  • Weight:
    • Amplifier:  10.8kg
    • Boxed (shipping weight):  12.3kg
