C-IC6 6.5" 2-Way Coaxial Ceiling Speaker 8Ω Black

« return to previous page

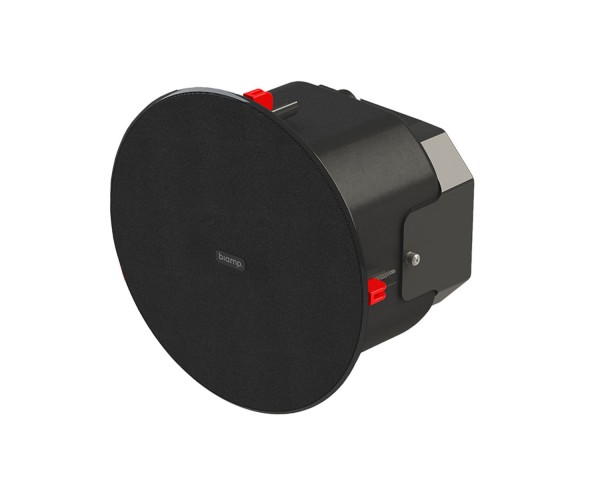

Biamp C-IC6 6.5 2-Way Coaxial Ceiling Speaker 8Ω Black - Main Image
Biamp C-IC6 6.5 2-Way Coaxial Ceiling Speaker 8Ω Black - Image 1
Biamp C-IC6 6.5 2-Way Coaxial Ceiling Speaker 8Ω Black - Image 2
Biamp C-IC6 6.5 2-Way Coaxial Ceiling Speaker 8Ω Black - Image 3
Price:
RRP: £261.60 inc VAT
Code:
BIACIC6B
Manufacturer Code:
911.0953.900
Brand:
Biamp

Quantity required:

Main Features

  • Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
  • Supports both CAT cables and standard speaker wiring
  • Bridge-mounted 1-inch soft dome tweeter
  • 130-degree coverage optimised for low ceilings
  • 60W with a peak power of 240W
  • Finish: Black
Share:

Desono C-IC6 Conferencing - Black

The C-IC6 is a two-way passive coaxial loudspeaker designed for speech and music reproduction in conferencing applications. Designed with the integrator in mind, installers have the flexibility to choose from category cable or standard speaker cable. The use of standard CAT greatly simplifies the installation. Plus, C-IC6 speakers used in conjunction with the AMP-450BP and its “audio locate” feature, allow installers to validate cabling and connections with just a simple click. Speakers can be blind-mounted and feature a magnetic grill for easy toolless installation and removal. Grill plates are available in white, black or red, or can be painted to match your room decor (Please contact our friendly sales team for any custom paint work). C-IC6 speakers are the ideal choice for any conferencing space that demands superior speech reproduction.

Product Features

  • Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
  • Supports both CAT cables and standard speaker wiring
  • Designed to be integrated with the AMP-450BP (backpack PoE+ amplifier)
  • 8-ohm nominal impedance allows for daisy chaining
  • Bridge-mounted 1-inch soft dome tweeter
  • 2-way 6.5” treated paper woofer, mechanically isolated and independent of tweeter
  • 130-degree coverage optimised for low ceilings
  • 60W with a peak power of 240W
  • Finish: Black

Product Specifications

General

  • Connectors: 4-pole Euroblock connector for two pair of parallel connections [up to 16AWG]; Two RJ-45 connectors
  • Nominal Impedance: 8Ω
  • Transducers:
    • Low Frequency: 6.5 inch (165mm) treated paper cone woofer
    • High Frequency: 1 inch (25mm) soft dome bridge-mounted tweeter
  • Frequency Range (-10dB): 60Hz — 20kHz
  • Output Power Rating (3dB compression, pink noise): 60W continuous; 120W peak
  • Sensitivity (1W @ 1m): 87dB SPL
  • Maximum SPL: 106dB
  • Nominal Coverage Angle (1-6kHz): 130°
  • Operating Environment: Designed for indoor use in climate-controlled environments
  • Included Accessories:
    • C Ring
    • Tile Bridge
    • Paintable Metal Grill

Product Dimensions

  • Overall Diameter: 11.2 inches (284mm)
  • Depth: 5.9 inches (151mm)
  • Weight: 7.8 lbs (3.5kg)
  • Cutout Diameter: 9.75 inches (248mm)

Compliance

  • UL and C-UL listed (USA and Canada)
  • CE Marked (Europe)
  • RoHS Directive (Europe)
  • Evaluated to the requirements of UL 1480a and UL 2043 and is suitable for use in air handling spaces

Product Downloads
