Dotz Par RGBL Can 16 x 3.5W RGBL COB LED

« return to previous page

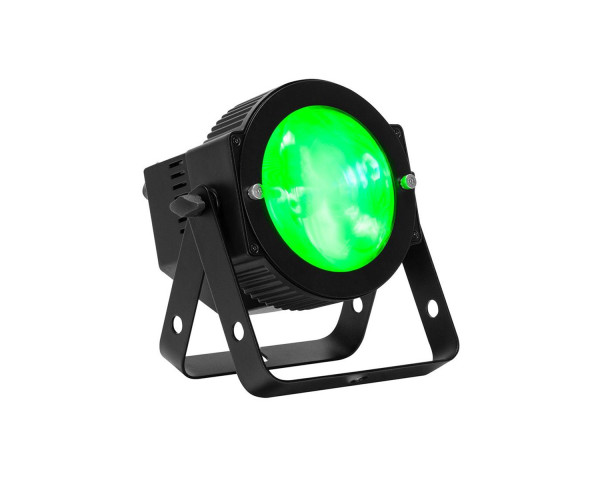

ADJ Dotz Par RGBL Can 16 x 3.5W RGBL COB LED - Main Image
ADJ Dotz Par RGBL Can 16 x 3.5W RGBL COB LED - Image 1
ADJ Dotz Par RGBL Can 16 x 3.5W RGBL COB LED - Image 2
ADJ Dotz Par RGBL Can 16 x 3.5W RGBL COB LED - Image 3
ADJ Dotz Par RGBL Can 16 x 3.5W RGBL COB LED - Image 4
Price:
RRP: £198.00 inc VAT
Code:
ADJ1223200107
Manufacturer Code:
1223200107
Brand:
ADJ

Quantity required:

Main Features

  • RGBL (red, green, blue, lime) C.O.B. LED
  • Tunable white colour temperature control from 2700K to 6500K
  • 6 Operational modes
  • Supports RDM (Remote Device Management)
  • 6 selectable Dimming Modes
  • 4 selectable Dim Curves
Share:

Dotz Par RGBL Can 16 x 3.5W RGBL COB LED

Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced colour mixing and tunable white colour temperature control from 2700K to 6500K.

Product Features

  • RGBL (red, green, blue, lime) C.O.B. LED
  • Tunable white colour temperature control from 2700K to 6500K
  • 6 Operational modes
  • Supports RDM (Remote Device Management)
  • 6 selectable Dimming Modes
  • 4 selectable Dim Curves

Product Specifications

SOURCE

  • Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
  • 20,000 Hours Rated Life

PHOTOMETRIC DATA

  • 18° Beam Angle (With Included Lens)
  • 29.7° Field Angle (With Included Lens)
  • CRI: 85.3
  • CRI R9: 79.1
  • Lux: 957 (@ 3m, Full On)
  • Footcandles: 89 (@ 3m, Full On)
  • Lumens: 1102

EFFECTS

  • Linear Colour Temperature Control (2700K to 6500K)
  • Preset Colour Temperatures
  • 16-Bit Fine Colour Control (Red, Green, Blue & Lime)
  • 64 built-in Colour Macros

CONTROL

  • 4-button, DMX digital display on rear panel
  • 6 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
  • Supports RDM (Remote Device Management)
  • With Wired Digital Communication Network
  • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
  • 1200Hz LED Refresh Rate
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%

CONSTRUCTION  / CONNECTIONS

  • Plastic construction
  • IEC Locking, In/Out Power connectors
  • Indoor 5-pin, XLR DMX, In/Out sockets
  • Scissor Yoke

ELECTRICAL / THERMAL

  • Multi-voltage operation: AC 100-240V, 50/60Hz
  • Max Power LInk: 30 @120V., 57 @230V.
  • Max power consumption: 36W
  • Fuse protected: T1A/250V (5*20mm)

DIMENSIONS / WEIGHT

  • Length: 5.19" (131.8mm)
  • Width: 8.23" (209mm)
  • Height: 8.72" (221.44mm)
  • Weight: 4.41lbs. / 2kg.

APPROVALS / RATINGS

  • CE
  • cETLus (4010765)
  • FCC
  • IP20

What's in the Box?

  • 1 x Power Cord
  • 1 x Lens Kit
