DP8-B 8" 2-Way High-Output Pendant Loudspeaker Black

« return to previous page

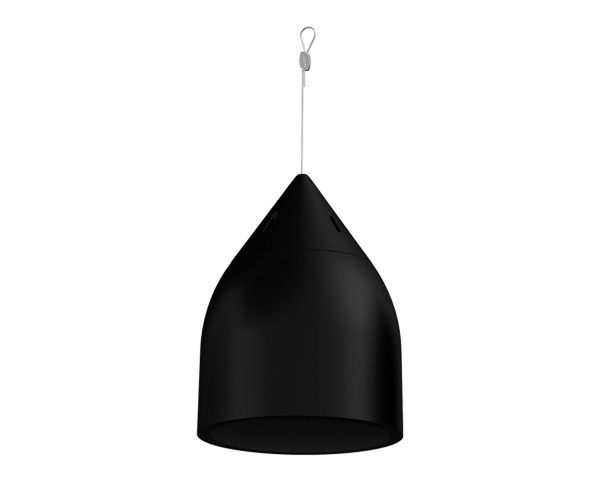

Community DP8-B 8 2-Way High-Output Pendant Loudspeaker Black - Main Image
Price:
RRP: £616.80 inc VAT
Code:
COMDP8B
Manufacturer Code:
911.0552.900
Brand:
Community

Quantity required:

Main Features

  • Stylish, contoured contemporary pendant design
  • Consistent, wide dispersion up to 16 kHz
  • True coaxial loudspeakers with HF compression drivers
  • Tru-Phase™ high-frequency waveguide
  • Patented Carbon Ring Cone Technology™
  • Finish: Black
Share:

DP8-B 8" 2-Way High-Output Pendant Loudspeaker - Black

The DP8 is a high performance 8-inch pendant loudspeakers designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, higher sensitivity and realistic sound reproduction, the DP8 is the more focused big brother to the DP6. D SERIES pendant loudspeakers can be used in a wide variety of speech and music applications. They are equipped with a built-in autoformer, supporting low impedance or 70V/100V operation. Uniform voicing means that the DP8 can be combined with other ceiling and surface mount models in the C or D SERIES family without compromising consistency from zone to zone. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry-leading sensitivity, thereby permitting 3 dB to 6 dB greater output level while requiring half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.

Product Features

  • Stylish, contoured contemporary pendant design
  • Same components and voicing as the Distributed Design ceiling and surface mount loudspeaker family
  • Consistent, wide dispersion up to 16 kHz
  • True coaxial loudspeakers with HF compression drivers
  • Tru-Phase™ high-frequency waveguide
  • Patented Carbon Ring Cone Technology™
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Easy-access power tap switch for selectable 8 ohm or 70V/100V operation
  • Integrated rear cover hiding all wires and hanging hardware
  • Weather-resistant construction with treated drivers and two-layer powder coated grilles
  • ETL listed to comply with UL1480
  • Available in standard black or white finishes
  • Five-year warranty

Applications

  • Bars and restaurants
  • Hotels, ballrooms and casinos
  • Shopping malls and retail environments
  • Health and fitness clubs
  • Houses of worship
  • Corporate meeting rooms
  • Airports, convention centres and exhibit halls

Product Specifications

  • Finish: Black or white paintable ABS matte plastic, dual-layer powder-coated steel grille
  • Nominal Beamwidth (H x V): 115° Conical
  • 70V/100V Autoformer: 120W, 60W, 30W, 15W (@70V only)
  • Continuous Max Output: 117 dB (123 dB Peak)
  • Power Handling: 150W continuous @ 8 ohms
  • Operating Range: 60Hz – 22 kHz
  • Sensitivity (1W/1m): 95 dB
  • Dimensions (H x Dia): 17.7" x 13.4" (450 x 341 mm)
  • Transducers: LF -1 x 8”, HF - 1 x 1.25” exit compression driver

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
