DPSP3 Digital Signal Processor 2 Input 6 Output 1U

« return to previous page

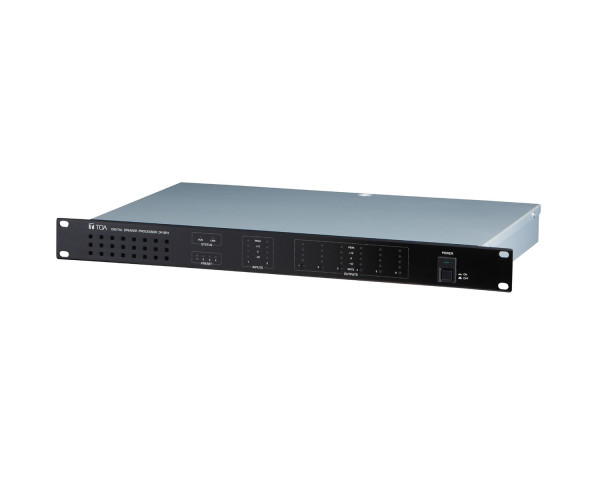

TOA DPSP3 Digital Signal Processor 2 Input 6 Output 1U - Main Image

TOA DPSP3 Digital Signal Processor 2 Input 6 Output 1U - Image 1

TOA DPSP3 Digital Signal Processor 2 Input 6 Output 1U - Image 2

TOA DPSP3 Digital Signal Processor 2 Input 6 Output 1U - Image 3

Price:: RRP: £1,762.80 inc VAT
Code:: TOADPSP3
Manufacturer Code:: DP-SP3
Brand:: TOA

Main Features

Digital Speaker Processor for clear, high-quality and realistic sound, with a full sense of presence
Essential audio processing tools: Filters, Compressor, Parametric Equalizer, Output Delay and Mute
10 filters on each input and 12 filters on each output, each filter type selectable
Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
2 inputs & 6 outputs, processor can work with a 3-way multi-amp system
1U

Full Description

The DP-SP3 is a 1U rack mountable Digital speaker processor having 2 inputs and 6 outputs. It features digital signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay. Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers, and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed on a PC with the supplied DP-SP3 PC Software installed. It can be mounted in an EIA component rack (1U size).

Features

Product Features

Digital Speaker Processor for clear, high-quality and realistic sound, with a full sense of presence
Essential audio processing tools: Filters, Compressor, Parametric Equalizer, Output Delay and Mute
10 filters on each input and 12 filters on each output, each filter type selectable
Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
2 inputs & 6 outputs, processor can work with a 3-way multi-amp system
1U

Technical Specs

Product Specifications

Power source: 220 - 240 V AC, 50 / 60 Hz
Frequency response: 20 Hz - 20 kHz (±1 dB)
Dynamic range: Over 110 dB
Distortion: < 0.03 % (at 1 kHz)
Power consumption: 25 W
Crosstalk: -80 dB
- Inputs:
- 2 channels, +4 dBu (Max. +24 dBu), 10 kΩ, electronically-balanced, removable terminal block (3P)
- Contact inputs: 4 channels, open voltage: 5 V DC, short-circuit current: 5 mA, removable terminal block (5P), control function: preset memory selection, volume control, and mute
- Outputs: 6 channels, +4 dBu (Max. +24 dBu), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
A/D, D/A Converter: 24 bits
LAN:
- Network I/F: 1 channel of 10BASE-T/100 BASE-TX (auto-negotiation), RJ45 connector, connection via switching hub
- Network protocol: TCP/IP, Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better)
- Maximum cable length: 100 m (between DP-SP3 and switching hub)
Sampling frequency: 96 kHz
Equalizer / Filter:
- Parametric Equalizer: 20 Hz – 20 kHz, ±15 dB, Q: 0.267 – 69.249
- Filter: High-pass filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct,
- Low-pass filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct,
- Notch filter: 20 Hz – 20 kHz, Q: 8.651 – 69.249,
- All-pass filter: 20 Hz – 20 kHz, Q: 0.267 – 69.249,
- High-shelving filter: 20 – 20 kHz, ±15 dB,
- Low-shelving filter: 20 – 500 Hz, ±15 dB,
- Horn equalizer: 20 kHz, 0 – 18 dB in 0.5 dB steps
Compressor:
- Threshold: -20 to +20 dBu in 1 dB steps
- Ratio: 1:1, 1.1:1,1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
- Attack time: 0.2 ms – 5 s
- Release time: 10 ms – 5 s
Delay: Delay time: 0 – 682.656 ms in 0.01 ms steps
Matrix: 2 x 6
Other features: Input PAD (-14dB) control, analog output attenuator (-∞ to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers, input/output level indicator (4-point LED indicator), output MUTE switch x 6
Operating humidity: 90 % RH (no condensation)
Operating temperature: 0 °C to +40 °C
Finish: Aluminium, hairline, black
Dimensions: 482 x 44 x 289 mm (W x H x D)
Weight: 3.1 kg
Accessory (included): Power cord (2 m) x 1, Removable terminal plug (3 pins) x 8, Removable terminal plug (5 pins) x 1, Rack nounting screw x 4, CD-ROM (containing setup software) x 1

Accessories

What's in the Box?

Power cord (2 m) x 1
Removable terminal plug (3 pins) x 8
Removable terminal plug (5 pins) x 1
Rack nounting screw x 4
CD-ROM (containing setup software) x 1
