DXR 15 MKII 15" 2-Way Class D Active Speaker 1100W

« return to previous page

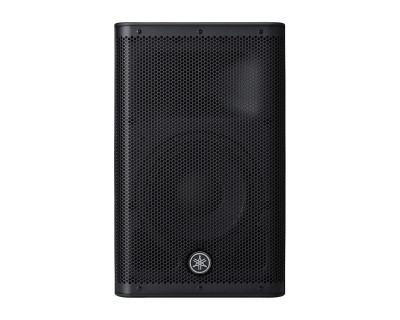

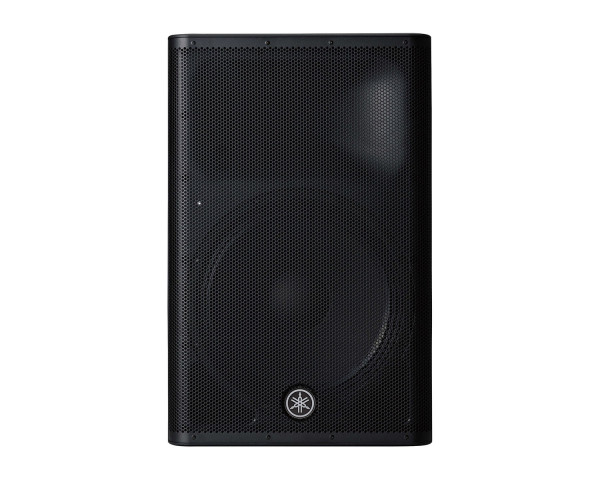

Yamaha DXR 15 MKII 15 2-Way Class D Active Speaker 1100W - Main Image
Yamaha DXR 15 MKII 15 2-Way Class D Active Speaker 1100W - Image 1
Yamaha DXR 15 MKII 15 2-Way Class D Active Speaker 1100W - Image 2
Yamaha DXR 15 MKII 15 2-Way Class D Active Speaker 1100W - Image 3
Yamaha DXR 15 MKII 15 2-Way Class D Active Speaker 1100W - Image 4
Price:
RRP: £1,084.80 inc VAT
Code:
YAMDXR15MKII
Manufacturer Code:
DXR 15 MKII
Brand:
Yamaha

Quantity required:

Main Features

  • 15" Powered loudspeaker
  • 1100W Class-D power amplifier
  • DSP-controlled advanced protection system
  • FIR-X tuning™ sound-processing technology
  • Dynamically control the level of each frequency range according to the application with D-CONTOUR
  • Finish: Black
Share:

DXR15MKII 15" 2-Way Class D Active Speaker 1100W

The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.

Product Features

  • 15" Powered loudspeaker
  • 1100W Class-D power amplifier
  • DSP-controlled advanced protection system
  • FIR-X tuning™ sound-processing technology
  • Dynamically control the level of each frequency range according to the application with D-CONTOUR
  • Finish: Black

Product Specifications

General

  • Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 49Hz - 20kHz
  • Nominal coverage:
    • H: 90°
    • V: 60°
  • Components:
    • LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
    • HF  Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
  • Crossover: FIR-X tuning™ (linear phase FIR filter)
  • Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
  • Maximum output level (1m; on axis): 132dB SPL
  • I/O connectors:  INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Power requirements:  100V - 240V, 50Hz/60Hz
  • Power consumption: 90W

Physical & Dimensions

  • Height: 700mm
  • Width: 445mm
  • Depth 380mm
  • Weight: 21.8 kg
  • Cabinet material: ABS (Matte Finish, Black)
  • Finish: Black
  • Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
  • Pole socket:35mm with 2-way features (0 or 7 degrees)

What's in the Box?

  • AC power cord
  • Owner’s Manual

Optional Accessories

  • SPCVR-1501 Speaker Cover
  • UB-DXR15 U-Bracket
