EasyConnect EC-P-UNI Cable Management Box 1x Socket / Control Pad

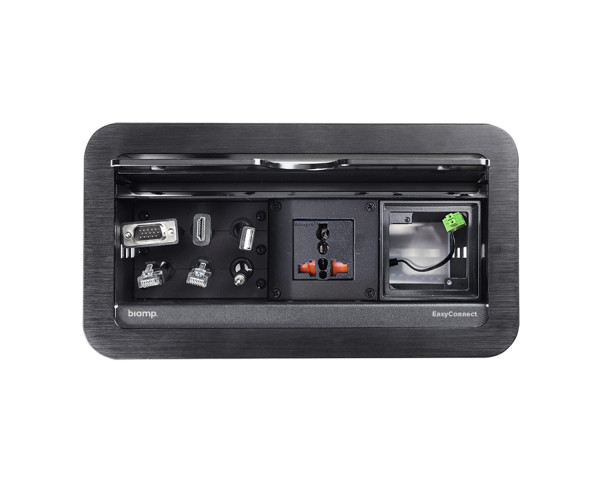

Biamp EasyConnect EC-P-UNI Cable Management Box 1x Socket / Control Pad - Main Image

Price:: RRP: £883.20 inc VAT
Code:: BIAECPUNI
Manufacturer Code:: 910.0512.900
Brand:: Biamp

Main Features

Configurable: support two power connections
Sliding cover with cable pass-through
6 foot (1.7 m) cables pull out and retract easily for storage
Included cables: HDMI, VGA, 3.5 mm audio, USB-A, 2X CAT5
Universal AC power connector
Supports the following control pads: Impera Sierra II, Impera Echo, Impera Echo Plus, and Impera Oscar

EasyConnect is a cable management solution installed in a table designed to eliminate common challenges of essential cables that are missing or too short, or power outlets not available or conveniently located. EasyConnect offers the secondary benefit of well-ordered cable management, where the cables are neatly routed instead of trailing across the floor. It can be configured in various combinations of power options with or without control pads. Having a control pad installed in the table makes controlling the AV equipment a faster and more efficient process.

Product Features

Configurable: support two power connections
Sliding cover with cable pass-through
6 foot (1.7 m) cables pull out and retract easily for storage
Included cables: HDMI, VGA, 3.5 mm audio, USB-A, 2X CAT5
Universal AC power connector
Supports the following control pads: Impera Sierra II, Impera Echo, Impera Echo Plus, and Impera Oscar
Direct-out 12V DC power supply
Covered by Biamp Systems’ five-year warranty

Product Specifications

Top Plate Dimensions
- Width: 9.9 inches (251 mm)
- Depth: 5.3 inches (135 mm)
Overall Dimensions
- Height: 4 inches (102 mm)
- Width: 8.6 inches (218 mm)
- Depth: 3.5 inches (89 mm)
- Weight: 5.5 lbs (2.5 kg)
Environmental
- Ambient Operating
- Temperature Range: 32 - 86° F (0 – 30° C)
- Humidity: 10-90% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
