EasyConnect MPX 100 BYOM AV Switching Device / Port Expander

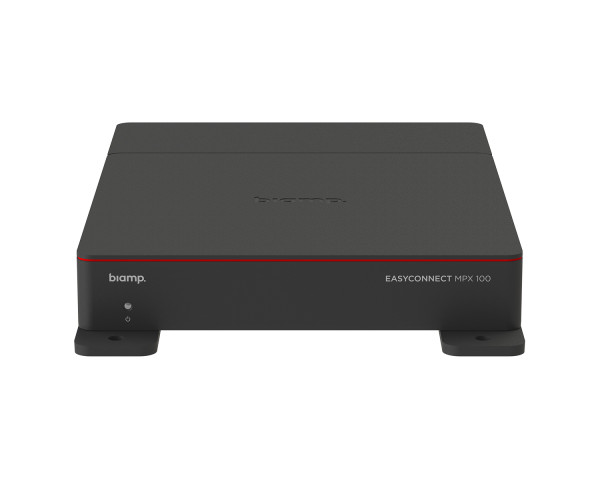

Biamp EasyConnect MPX 100 BYOM AV Switching Device / Port Expander - Main Image

Price:: RRP: £1,250.40 inc VAT
Code:: BIAMPX100
Manufacturer Code:: 913.1963.900
Brand:: Biamp

Main Features

Easily adds BYOM calls to UC rooms
USB and HDMI connectivity with no drivers required
Mounts behind the display and includes cables that run to the table
SageVue compatible
Provides passthrough to other Biamp AV solutions
Allows firmware updates on connected Biamp devices

EasyConnect MPX 100 is an easy to use media switcher designed for conference rooms equipped with a dedicated UC room system, such as a Microsoft Teams Room or Zoom Room, but from which a user occasionally needs to use an alternate UC platform. When a user needs to use an alternate UC platform, a laptop connects to the second MPX 100 input and it will automatically switch away from the primary UC host system and connect the user device to the room AV peripherals. Launch the alternate UC meeting from the laptop and conduct the meeting as normal. As soon as the user disconnects, the room peripherals return to the dedicated UC room host.

The EasyConnect MPX 100 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Product Features

Easily adds BYOM calls to UC rooms
USB and HDMI connectivity with no drivers required
Mounts behind the display and includes cables that run to the table
SageVue compatible
Provides passthrough to other Biamp AV solutions
Allows firmware updates on connected Biamp devices
Extra USB ports for cameras, microphones, or touchscreens
HDMI 2.0 for displays up to 4K resolution
Compliant with the US Trade Agreement Act (TAA)

Product Specifications

UC ports:
- 1 x HDMI in 2.0
- 1 x USB 3.0 Type-B
Laptop ports:
- 1 x HDMI in 2.0
- 1 x USB 3.0 Type-B
Room A/V ports:
- 1 x HDMI out 2.0
- 3 x USB 3.0 Type-A
- 1 x USB 3.0 Type-C
Network port: RJ 45 Network Gigabit Ethernet (LAN)
Power: 1 x 24V/3.75A with lock connector
Overall Dimensions
- Height: 1.47 inches (37.3 mm)
- Width: 8.11 inches (206 mm)
- Depth: 8.11 inches (206 mm)
- Weight: 1.9 lbs (0.86kg)
Power Consumption
100-240VAC 50/60Hz: < 150W
Environmental
- Ambient Operating
- Temperature Range: 32-104° F (0–40° C)
- Relative Humidity: 0–98%, non-condensing
- Altitude: 0-6,600 ft (0-2000m) MSL
Compliance:
- FCC Part 15B (USA)
- Canada ICES-003 (A) / NMB-003 (A)
- CE marked (Europe)
- UL und C-UL listed (USA and Canada)
- RCM (Australia)
- RoHS Directive (Europe)
