EKX12 12" 2-Way Wood Enclosure Passive Speaker 350W

« return to previous page

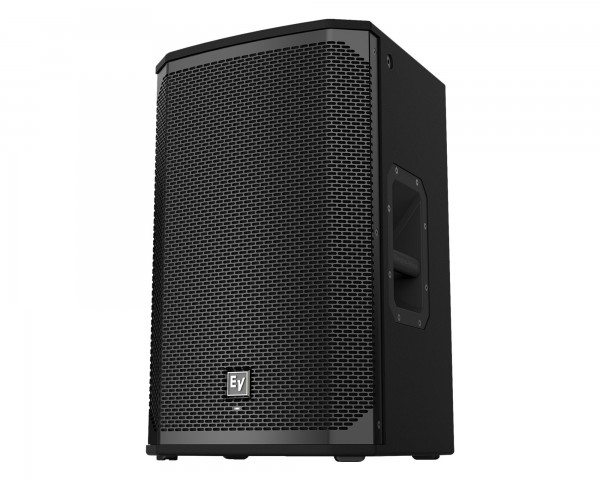

Electro-Voice EKX12 12 2-Way Wood Enclosure Passive Speaker 350W - Main Image
Electro-Voice EKX12 12 2-Way Wood Enclosure Passive Speaker 350W - Image 1
Electro-Voice EKX12 12 2-Way Wood Enclosure Passive Speaker 350W - Image 2
Electro-Voice EKX12 12 2-Way Wood Enclosure Passive Speaker 350W - Image 3
Price:
RRP: £744.48 inc VAT
Code:
ELEEKX12
Manufacturer Code:
F.01U.303.364
Brand:
Electro-Voice

Quantity required:

Main Features

  • Combines legendary EV sound quality and reliability with the latest technology
  • Suitable for a wide range of sound reinforcement scenarios
  • Including musicians/DJs and live/club/installed sound applications
  • This is the 12" passive version
  • EKX is positioned above the ZLX and ELX series
  • EKX is positioned below the ETX series
Share:

EKX12 12" 2-Way Wood Enclosure Passive Speaker 350W

The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

EKX-12 delivers up to 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M.

1-inch titanium compression driver).EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

Product Features

  • 1400 W (peak), 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing and durable EVCoat finish.
  • Eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.
  • 90˚ x 60˚ pattern coverage for best coverage on mid-size stages and 40˚ monitor angle with rubber feet.

Product Specifications

General

  • Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
  • Maximum SPL: 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
  • Nominal Impedance: 8 Ω
  • Power Handling (Continuous / Peak): 350 W/1400 W
  • Frequency Response (-3 dB): 82 Hz - 18 k Hz Full Space Measurement
  • Frequency Response (-10 dB): 55 Hz - 20 k Hz Full Space Measurement
  • Recommended High-Pass Frequency: 55 Hz
  • Coverage (Nominal -6 dB) H: 90 °
  • LF Transducer: EVS-12M 300 mm (12 in)
  • HF Transducer: DH-1M 1-inch titanium compression driver
  • Crossover Frequency: 1.6 k Hz
  • Minimum Impedance: 7.5 Ω
  • Connector Type: Dual NL4
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Grill: 18 AWG steel with powdercoat
  • Suspension: (8) M10 threaded mounting points

Physical & Dimensions

  • Height: 607mm
  • Width: 375mm
  • Depth: 356mm
  • Weight: 17.4kg
