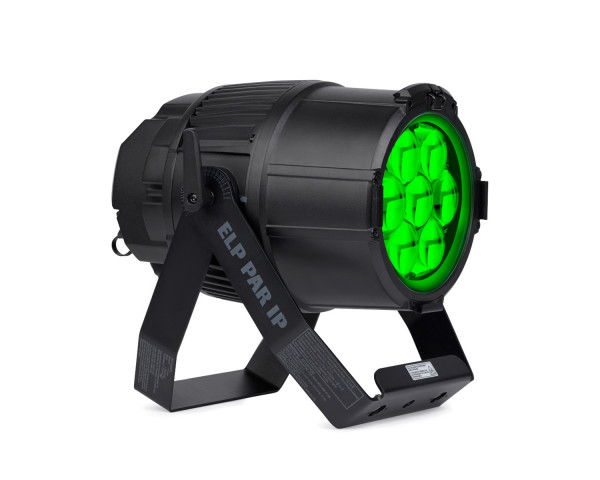

ELP PAR IP Static 7x40W RGBW LED PAR Fixture 5.5-50 Zoom IP65 Blk

Product Features

• Light engine: 7 x 40W RGBW
• Full-gamut color-calibration system
• CTC control: 1,800–12,850 K
• Quick Focus mode allows installation and focusing without the need for a console operator
• Clear of projection indicators allow quick installation
• Angled power and data connections support a clean cable run that does not impede the fixture or installation
• Included truss and floor-mounting yoke with omega bracket connectivity
• Lumen output: 3,350
• Zoom: 5.5–50˚
• Intensity: 329,058 cd
• IP65 rating
• Dimensions: 315 x 285 x 498 mm (12.4 x 11.3 x 15.7 in) (inc. bracket)
• Weight: 9.1 kg (20 lbs)

Product Specifications

Dynamic Effects

• Colour mixing:  RGBW
• Colour presets:  48 colour presets, virtual colour wheel effects
• Electronic dimming:  0 - 100%, four dimming curve options
• Strobe and pulse effects:  Variable speed and action, random strobe
• Electronic shutter effect:  Instant open and blackout
• Zoom:  Motorized
• Colour temperature:  Variable 1800 – 12 850 K

Control And Programming

• Control options:  DMX, RDM
• DMX channels:  14
• 16-bit fine control:  Dimming, RGB, Zoom
• LED colour management modes:  Raw, extended and calibrated
• DMX address setting:  Control panel with OLED display
• DMX compliance:  USITT DMX512-A
• RDM compliance:  ANSI/ESTA E1.20

Optics

• Light source:  7 x 40 W RGBW Osram LEDs
• Minimum LED lifetime:  50 000 hours (to >70% luminous output)*
• Beam angle (half-peak):  4.4 – 33.3°
• Field angle (one-tenth peak):  5.5 – 50.0°
• Binning:  Tight colour and flux binning
• Calibration:  Full Gamut and Colour Calibration
• Maximum output:  3350 lumens
• *Figure obtained under manufacturer´s test conditions

Photometric Data

• Wide beam:  3350 lumens
• Narrow beam:  1626 lumens
• Fixture Center Intensity Narrow Beam:  329058 cd
• Fixture Center Intensity Wide beam:  10141 cd
• CRI (Colour Rendering Index) :  >70
• CQS (Colour Quality Scale):  84
• TM-30 Rf (IES TM-30-15 Fidelity Index):  79
• TM-30 Rg (IES TM-30-15 Gamut Index):  116
• TLCI (Television Lighting Consistency Index):  61
• CCT:  6500 Kelvin
• LED refresh rate - Standard Mode:  3600 Hz
• LED refresh rate - Theatre Mode:  19200 Hz
• *All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction

• Housing:  Aluminium and composite
• Filter mount:  191 x 191 mm (7.5 x 7.5 in.)
• Colour:  Black
• Ingress protection rating:  IP65

Installation

• Mounting points:  Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
• Location:  Wet locations, temporary outdoor use, not for household use
• Orientation:  Any
• Minimum distance to combustible materials:  0.5 m (1.7 ft.)
• Minimum distance to illuminated surfaces:  1 m (3.3 ft.)
• Minimum clearance around fan and air vents:  0.5 m (1.7 ft.)

Connections

• AC power in, thru:  Neutrik PowerCON TRUE1 TOP
• DMX data in, thru:  Neutrik IP-rated 5-pin locking XLR

Electrical

• AC power:  100-240 V nominal, 50/60 Hz
• Typical power consumption:  300 W
• Power supply unit:  Auto-ranging electronic switch mode
• Maximum half-cycle RMS inrush current:  11.2 A

Maximum Power and Current

• 100-120 V, 60 Hz :  3.7 A, 330 W, Power factor 0.99
• 220-240 V, 50 Hz:  1.7 A, 330 W, Power factor 0.94
• *Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

• Maximum surface temperature:  71° C (160° F)
• Cooling:  Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.):  40° C (104° F)
• Minimum ambient temperature (Ta min.):  -10°C (14° F)
• Total heat dissipation*:  1126 BTU/hr.
• *Calculated, +/- 10%, at full intensity, full white

Acoustic Data

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output):  40.9 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low):  37.9 dB(A)

Environmental

• RoHS:  Compliant
• REACH:  Compliant
• WEEE:  Compliant
• Proposition 65:  Compliant
• Efficacy (max output):  14.3 lm/W
• LWR*:  385 lm/kg (174 lm/lb)
• LWR = Lumen-to-Weight Ratio

Approvals

• Global CB Certification/IECEE:  IEC 60598-2-17 (IEC 60598-1)
• EU safety:  EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC:  EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety:  UL 1573
• US EMC:  FCC Part 15 Class B
• Canadian safety:  CSA C22.2 No. 166
• Canadian EMC:  ICES-003 Class B, ICES-005 Class B
• Australia/NZ:  RCM
• United Kingdom:  UKCA

Physical

• Length: 315 mm (12.4 in.)
• Width: 285 mm (11.3 in.)
• Height: 398 mm (15.7 in.) with bracket
• Weight: 9.1 kg (20.1 lbs.)

What's in the Box?

• ELP PAR IP
• Adjustable mounting bracket
