EON710 10" Powered PA Speaker with Bluetooth 650W Black

« return to previous page

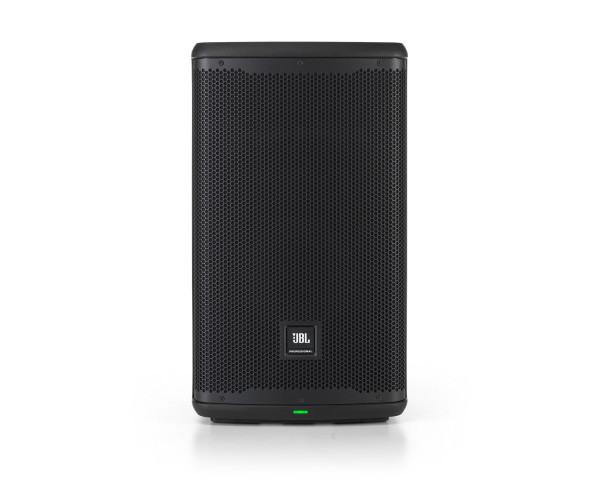

JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Main Image
JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Image 1
JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Image 2
JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Image 3
JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Image 4
JBL EON710 10 Powered PA Speaker with Bluetooth 650W Black - Image 5
Price:
RRP: £605.00 inc VAT
Code:
JBLEON710
Manufacturer Code:
JBL2067
Brand:
JBL

Quantity required:

Main Features

  • Custom-designed 10-inch woofer
  • 2414H compression driver
  • Redesigned high-frequency horn
  • Built-in 3-channel digital mixer
  • Colour backlit LCD screen provides easy access to functions
  • Universal JBL Pro Connect app control
Share:

EON710 10" Powered PA Speaker with Bluetooth 650W Black

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.

Product Features

  • Custom-designed 10-inch woofer
  • 2414H compression driver
  • Redesigned high-frequency horn
  • Built-in 3-channel digital mixer
  • Colour backlit LCD screen provides easy access to functions
  • Universal JBL Pro Connect app control
  • Bluetooth 5.0 streaming and control
  • Durable polypropylene cabinet and metal grille
  • Ergonomic handle simplifies transport
  • Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
  • Stackable cabinets for easy storage

Product Specifications

General

  • System Type:  10IN Powered Loudspeaker
  • Woofer Model:  710G
  • Woofer Size:  10"
  • Woofer:  Ferrite
  • Woofer Voice Coil:  2"
  • Tweeter Model:  2414H Compression Driver
  • Tweeter Size:  1"
  • Tweeter Magnet:  Neodymium
  • Transducer Impedence:  LF 4ohm rated, HF 8ohm rated
  • Max SPL:  125dB @1m/4Pi
  • Freq Range -10:  52Hz - 20kHz
  • Freq Range -3:  65Hz - 20kHz
  • Hor Dispersion:  110°
  • Vert Dispersion:  60°
  • Power Rating:  1300W peak / 650 RMS
  • AC Power Input:  100V-120V or 220V-240V
  • Cooling:  Passive
  • LED Indicators:  1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
  • Input Impedence:  50k/100k un-balanced/balanced
  • Input Gain:  -∞ to +36db
  • Crossover Freq:  2 kHz
  • I/O: 2 XLR Combo Jacks / BT 1 XLR M Thru

Physical

  • Cabinet:  PP+10% Talc
  • Grille:  16GA perforated steel with acoustically transparent black cloth backing
  • Suspension / Mount:  4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
  • Handles:  1, Cable channel on bottom
  • Net Weight:  12kg (26.46 lbs.)
  • Gross Weight:  15.2kg (33.51 lbs.)
  • Product Dims HxWxL:  587x332x305mm (23.11x13.07x12 in.)
  • Shipping Dims HxWxL:  606x439x407mm (23.86x17.28x16.02 in.)
