EOS Motorised Fader Wing 10 with 10 Motorised Faders

« return to previous page

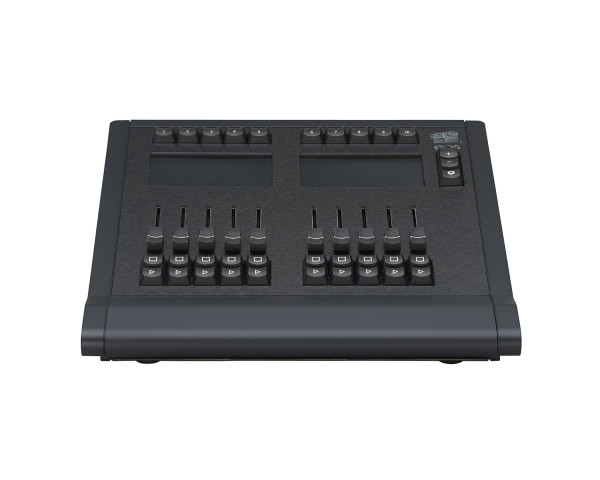

ETC EOS Motorised Fader Wing 10 with 10 Motorised Faders - Main Image
ETC EOS Motorised Fader Wing 10 with 10 Motorised Faders - Image 1
ETC EOS Motorised Fader Wing 10 with 10 Motorised Faders - Image 2
Price:
POA
Code:
ETCEOSFADM10
Manufacturer Code:
4240A1021-EU
Brand:
ETC

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • 10 x 60mm motorised faders with control buttons
  • 2 x 4.3-inch full-colour LCD displays
  • 100 unique 10-fader pages
  • Playback layout consistent with Eos Ti and Gio
  • Paging/bank conventions are determined in a setup menu
  • Button/fader and configuration mapping displayed via full-colour high-resolution displays
Share:

EOS Motorised Fader Wing 10 with 10 Motorised Faders

The Eos motorized fader wings may be used to provide extended playbacks for Eos Ti, Gio, Gio @5, Ion Xe, Eos and Ion Xe RPUs, RVIs, ETCnomad (PC or Mac native) and ETCnomad Puck. Up to three wings may be attached to any of these devices. There are two wings – a x10 and x20. The x10 has 10 60mm motorized faders, two 4.3” full-colour high-resolution displays and three controls buttons. The x20 adds 10 additional faders, two more displays and three controls buttons. The wing provides power sensing and automatically turns on when both an active USB data connections and mains power are provided via the external 12V power supply. Connected devices must be running Microsoft Windows 7 or higher or Mac OSX El Capitan (10.11) or later. These wings are NOT compatible with Windows XP.

Product Features

  • 10 x 60mm motorised faders with control buttons
  • 2 x 4.3-inch full-colour LCD displays
  • 100 unique 10-fader pages
  • Playback layout consistent with Eos Ti and Gio
  • Paging/bank conventions are determined in a setup menu
  • Button/fader and configuration mapping displayed via full-colour high-resolution displays
  • Two powered USB ports
  • VESA 100x100mm mountable
  • Kensington Lock compatible locking point

Product Specifications

  • Dimensions (HxWxD):  109mm x 307mm x 362mm
  • Weight:  2.8kg

What's in the Box?

  • Power supply
  • IEC power cord
  • Dust cover
  • USB cable
