ePS12 2-Way 12

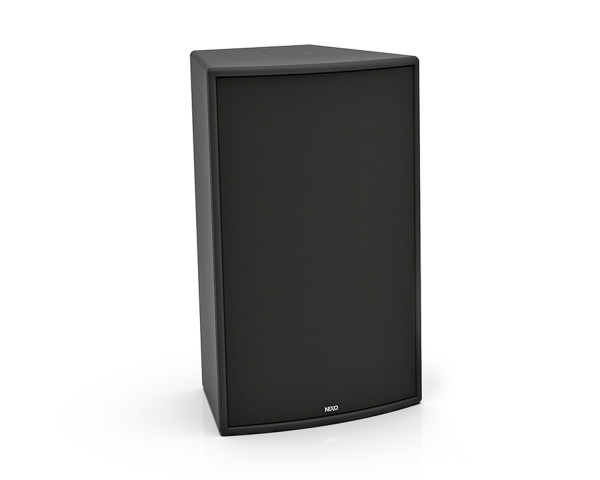

NEXO ePS12 2-Way 12 LF / 1.4 HF Installation Loudspeaker IP55 Black - Image 2

Price:: RRP: £1,834.60 inc VAT
Code:: NEXEPS12
Manufacturer Code:: 01EPS12
Brand:: NEXO

Main Features

High power (133 dB peak) point source loudspeaker for fixed installation
Lightweight (18kg / 40lbs) design
Robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level
Comprehensive range of accessories for deploying in a wide variety of fixed installation

EPS12 2-Way 12" LF / 1.4" HF Installation Loudspeaker IP55 Black

Measuring 600mm high x 370mm wide x 317mm deep and weighing 18Kg, the ePS12 combines a high excursion 12-inch LF driver with a 1.7-inch voice coil HF driver in a trapezoidal cabinet constructed in a closed acoustic design from 15mm baltic birch plywood. Achieving a peak SPL of 133dB with a frequency range of 60Hz to 20kHz, the ePS12 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Product Features

High power (133 dB peak) point source loudspeaker for fixed installation
Lightweight (18kg / 40lbs) design
Robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level
Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
Black finish with custom RAL colours available

Product Specifications

Frequency Response @-6 dB: 60 Hz to 20 kHz
Sensitivity 1W@1m: 103 dB SPL Nominal
Peak SPL@1m: 133 dB
Vertical Dispersion: +25°/-30°
Horizontal Dispersion: 50° to 100° asymmetrical
Crossover Frequency: 60 Hz, 85 Hz, 120 Hz
Nominal Impedance: 8 Ω
Recommended Power: 600 to 950 Watts / 8 Ohms
Number of ways: 2 way passive
LF Component: 12” 8 Ohms long excursion neodymium driver
HF Component: 1.7” diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
Connectors: 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
Compatible cables section: Cables from 0.75 mm² to 3.31 mm² (AWG 18 to 12) copper section
Compatible cables outside diameter: Cable with maximum outside diameter of 11 mm
Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
Material: 15 mm thick birch plywood body and galvanized grill
Finish: Black structural paint (RAL9005 or Custom RAL upon request)
Front Finish: UV & Fire resistant acoustic fabric
Height x Width x Depth: 600mm x 370mm x 317mm (23.6” x 14.6” x 12.5”)
Weight: Net: 18 kg (40 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
IP Rating: IP55
