ES8755R [FM3] Flush Mount Power Module 3-Pin for ES925 Series

« return to previous page

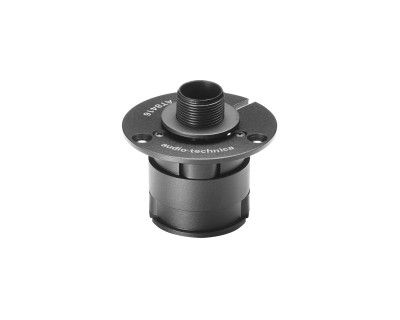

Audio Technica ES8755R [FM3] Flush Mount Power Module 3-Pin for ES925 Series - Main Image
Audio Technica ES8755R [FM3] Flush Mount Power Module 3-Pin for ES925 Series - Image 1
Audio Technica ES8755R [FM3] Flush Mount Power Module 3-Pin for ES925 Series - Image 2
Price:
RRP: £229.00 inc VAT
Code:
AUDES8755R
Manufacturer Code:
ES8755R
Brand:
Audio Technica

Quantity required:

Main Features

  • 3-Pin Flush Mount Power Base Module [Also known as FM3]
  • ES925 Compatible condenser capsules (Cardioid, Hypercardioid & MicroLine®)
  • ES925 Compatible gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
  • All product combinations available
  • Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.
Share:

ES925 3-Pin Flush Mount Power Base Module Only

3-Pin flush mount Power base module for Audio-Technica ES925 series.

This power base can be interchanged with a variety of different condenser capsules (Cardioid, Hypercardioid & MicroLine®) and gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)

This component is available in four different power modules (XLR, FM3, FM5 & DS5)

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Features

  • Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
  • Available interchangeable elements permit angle of acceptance from 90° to 360°
  • Interchangeable condenser microphone elements provide full-range, natural sound
  • Designed for professional sound reinforcement and other commercial sound applications
  • Small-diameter gooseneck design permits highly flexible positioning
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in four different power modules (XLR, FM3, FM5 & DS5)
  • ES925 Compatible condenser capsules (Cardioid, Hypercardioid & MicroLine®)
  • ES925 Compatible gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
  • All product combinations available

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Specifications

General

  • Impedance:  180 ohms
  • Switches:  LED colour x2: mic on, mic off
  • Power Requirements:  22-52V DC
  • Output Connector:  Integral 3-pin XLRM-type
  • Switch Logic:  Local

Physical

  • Weight:  75 g
  • Dimensions:  38.0 mm W x 48.0 mm D x 90.8 mm H

What's in the Box?

  • ES925 3-Pin Flush Mount Power Base
  • One pair of isolators
  • Nut
  • Set screw (M2 x 2)
  • Hex wrench
