ES933WC Cardioid Condenser Hanging Mic XLR Power Module WHITE

« return to previous page
Audio Technica ES933WC Cardioid Condenser Hanging Mic XLR Power Module WHITE - Main Image
Price:
RRP: £299.00 inc VAT
Code:
AUDES933WC
Manufacturer Code:
ES933WC
Brand:
Audio Technica

Quantity required:

Main Features

  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Small size and excellent response
  • Low profile element provides uniform cardioid polar pattern
  • Available interchangeable elements
  • Superior off-axis rejection
  • Includes AT8538 XLR phantom power only in-line power module
Share:

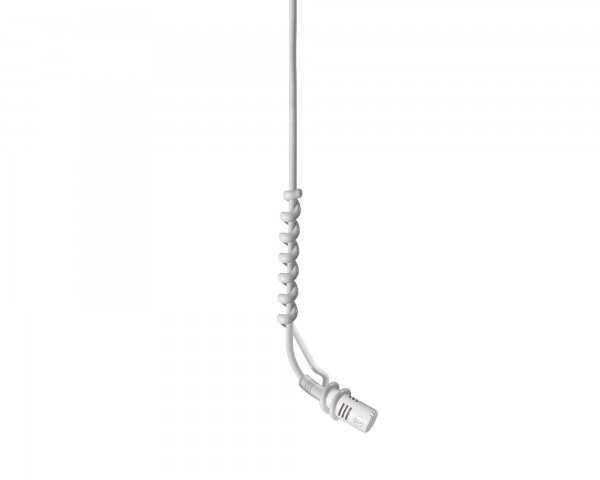

ES933WC Cardioid Condenser Hanging Mic White

With durable construction and unobtrusive appearance, the ES933C offers versatile solutions for speech, theatre, orchestra and choir sound reinforcement and recording. The microphone's low-profile element provides a uniform cardioid polar pattern with 120º acceptance angle.

Product Features

  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Small size and excellent response are ideal for suspension over choirs, instrumental groups and theatre stages
  • Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
  • Available interchangeable elements permit angle of acceptance from 90º to 360º
  • Superior off-axis rejection for maximum gain before feedback
  • Includes AT8538 XLR phantom power only in-line power module
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality

Product Specifications

General

  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN: Cardioid
  • FREQUENCY RESPONSE: 30-20,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: -40 dB (10.0 mV) re 1V at 1 Pa
  • IMPEDANCE: 250 ohms
  • MAXIMUM INPUT SOUND LEVEL: 138 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): 109 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • SWITCH: Flat, roll-off
  • OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
  • CABLE: 15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector

Physical & Dimensions

  • Microphone
    • Length: 27.5mm
    • Head Diameter: 8.4mm
    • Weight: 5.5g
  • Power Module
    • Length: 92.9mm
    • Diameter: 18.9mm
    • Weight: 8g

What's in the Box?

  • AT8109(WH) two-stage foam windscreen
  • AT8452(WH) steel hanger
  • AT8538 power module
