ES933WHMIC Hypercardioid Cond Hanging Mic TA3F Connector WHITE

« return to previous page

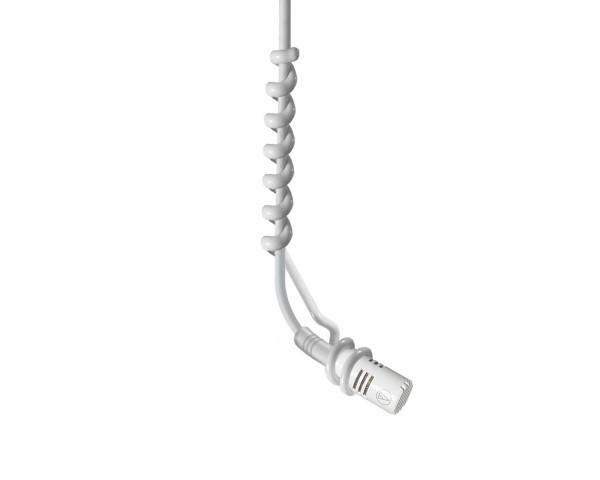

Audio Technica ES933WHMIC Hypercardioid Cond Hanging Mic TA3F Connector WHITE - Main Image
Audio Technica ES933WHMIC Hypercardioid Cond Hanging Mic TA3F Connector WHITE - Image 1
Audio Technica ES933WHMIC Hypercardioid Cond Hanging Mic TA3F Connector WHITE - Image 2
Price:
RRP: £209.00 inc VAT
Code:
AUDES933WHMIC
Manufacturer Code:
ES933WHMIC
Brand:
Audio Technica

Quantity required:

Main Features

  • ES933WH/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance white finish.
  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Small size and excellent response are ideal for suspension over choirs, instrumental groups and theatre stages
  • Available interchangeable elements permit angle of acceptance from 90º to 360º
  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom
Share:

ES933WHMIC Hypercardioid Condenser Hanging Mic TA3F Connector Wht

The ES933 condenser hanging microphone is designed for quality sound reinforcement, professional recording, television, and other demanding sound pickup applications. Its low-profile design and excellent response make it ideally suited for suspending over choirs, instrumental groups and theatre stages.

The microphone is equipped with a 15.2 m (50') permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules. UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).

The microphone comes with a two-stage foam windscreen and vinyl-coated steel hanger.

Product Features

  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Small size and excellent response are ideal for suspension over choirs, instrumental groups and theatre stages
  • Available interchangeable elements permit angle of acceptance from 90º to 360º
  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality

Available Configurations

  • ES933C/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance black finish.
  • ES933H/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance black finish.
  • ES933ML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance black finish.
  • ES933WC/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance white finish.
  • ES933WH/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance white finish.
  • ES933WML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance white finish.
  • ES933C: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
  • ES933H: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
  • ES933ML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
  • ES933WC: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
  • ES933WH: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
  • ES933WML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.

Product Specifications

  • Polar Pattern:  Hypercardioid
  • Element:  Fixed-charge back plate, permanently polarised condenser
  • Frequency Response:  30 - 20,000 Hz
  • Low Frequency Roll Off:  80 Hz, 18 dB/octave
  • Open Circuit Sensitivity:  -40 dB (10.0 mV) re 1V at 1 Pa
  • Maximum Input Sound Level:  138 dB SPL, 1 kHz at 1% THD
  • Dynamic Range:  109 dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio:  65 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements:  11-52V DC, 2 mA typical
  • Switches:  Flat, roll-off
  • Cable:  15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector
  • Finish: White

What's in the Box?

  • ES933
  • ES933 Hypercardioid Capsule
  • AT8109(WH) two-stage foam windscreen
  • AT8452(WH) steel hanger
