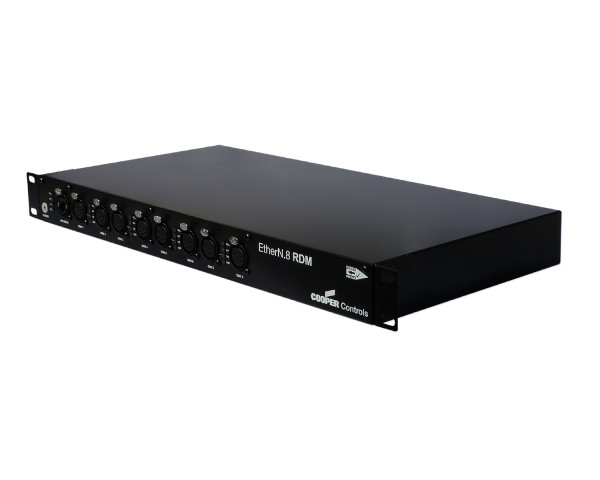

therN.8 RDM from Cooper Controls offers flexible Ethernet to DMX/RDM data conversion in a 19” format. Up to 8 universes of Art-Net DMX/RDM data can be output from the EtherN.8 RDM to your lighting system. The unit is configured through an internal web server or via optional control software. Simplicity is key to the EtherN.8 RDM.
The EtherN.8 RDM is fully compatible with the latest RDM protocol, ensuring your DMX distribution network is ready to meet your future demands. The slim 19” enclosure makes it ideal for combining with the Split2.8 RDM to build a larger data distribution system. When combined with any ZerOS family console, the EtherN.8 RDM provides on-board configuration from the console, for a truly integrated system.
Whatever your lighting system, the EtherN.8 RDM simplifies data distribution.
Product Features
Ethernet to 8 universes of DMX
Configuration via Web Browser
Optional configuration from ZerOS consoles
Grounded DMX outputs
Fully RDM compatible
Desk Mount or 19” Rack Mount Form Factor
Worldwide 90-250V AC Power supply
CE compliant to all relevant standards
Product Specifications
General
Connections
2 x RJ45 Ethercon Art-Net
1 x IEC C13 Male Mains Input
8 x 5pin Female XLR DMX Output
User Interface
Web-Browser / DMX-Workshop
Configuration: Jumpers / Switches
Sub-Net, RDM Disable, IP Address
ROM Boot, Factory Reset
Indication
Power / Ethernet Link / Activity / Speed
Art-Net Activity / DMX Transmitted
Housing: 19” 1U Rack Enclosure
Material: Metal
Mounting: Desktop or 19” Rack Mounting (with supplied rack ears)
Output Protocols:
DMX512-A
RDM V1.0 (E1.20 - 2006 ESTA Standard)
Output Connector: 5pin Female XLR
Configuration:
Universe, Sub-Net, Config (Art-Net)
DMX Output Specification (via Web Browser)
Ethernet IP Address
Input Voltage: 90 - 250V AC
Input Connector: IEC C13 Male
Input Power (max): 30W
Duty Cycle: 80% @ 25°C
Mains Earthing: Case connected to Mains Earth
Mains Fuse: 3.15A Slow Blow
Isolation:
External Ethernet port Isolated to 1kV
DMX Output - Ground Referenced
Protection:
Mains 3.15A Slow Blow Fuse
Internal Resettable Fuse - Control Electronics
Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to +50°C
Operating Relative Humidity (max): 80% Non Condensing
