EVID C4.2D 4" Ceiling Speaker with Fire Rated Terminals EACH

« return to previous page

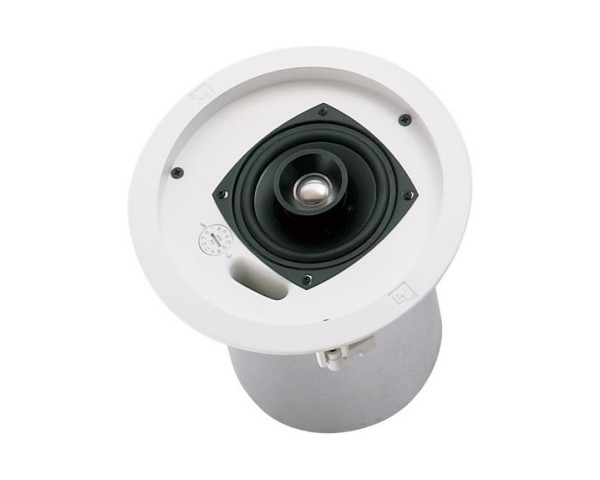

Electro-Voice EVID C4.2D 4 Ceiling Speaker with Fire Rated Terminals EACH - Main Image
Price:
RRP: £149.94 inc VAT
Code:
ELEEC42D
Manufacturer Code:
F.01U.139.233
Brand:
Electro-Voice

Quantity required:

Main Features

  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Front-panel mode/wattage selector
  • White semi-gloss perforated grille
Share:

EVID C4.2D 4" Ceiling Speaker with Fire Rated Terminals

The EVID C4.2D is ported and tuned to provide surprising bass response in such a compact package. Perfect for conventional rooms, its compact design fits in tight areas and has excellent bandwidth in an aesthetically unobtrusive installation profile. Its 4-inch woofer and waveguide-coupled, titanium-coated dome tweeter give smooth, wide frequency response. An easy 3-point mounting system is included for quick installations.

Product Features

  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Product Specifications

General

  • Chassis Size: 101.6mm
  • Colour: White (paintable surface)
  • Coverage (Nominal -6 dB): 130 conical
  • Diameter (Max): 181mm
  • Input Formats: 8 Ω, 70 V, 100 V
  • Mounting Systems: Integrated 3-point toggle anchors
  • Speaker Type: Ported cabinet, internally damped, two-way passive crossover included
  • Transformer: Yes
  • Transformer Taps: (1.88 - 70 V only), 3.75, 7.5, 15, 30
  • Frequency Response (-10 dB): 65 - 20000 Hz
  • Sensitivity 1 W/1 m: 86 dB
  • System Power Handling (Continuous/Program/Peak): 50 Watts Overload Protected
  • LF Transducer: 4-inch polypropylene cone
  • HF Transducer: 0.75-inch (19 mm) Ti Mylar Laminate Dome
  • Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
  • Outdoor: No
  • Grill: Powder-coated steel

Physical & Dimensions

  • Height: 176mm
  • Weight: 2.7kg
