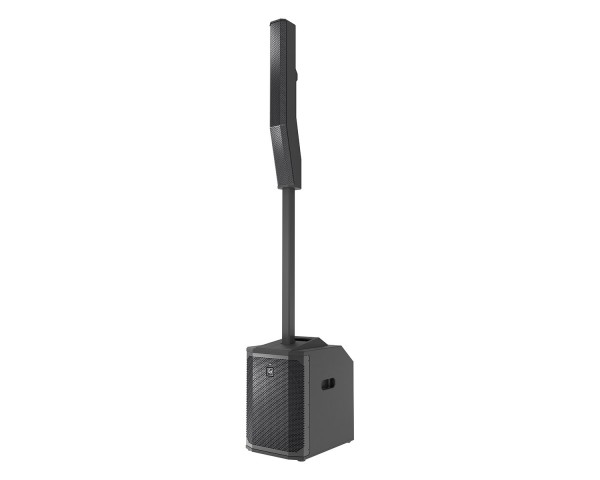

EVOLVE 50M-B BLACK Powered Portable Column System with Mixer + BT

Product Features

• The EVOLVE 50M joins the EVOLVE 50 and EVOLVE 30M in the award-winning EVOLVE series - globally recognised as the benchmark for performance in column systems
• Professional performance, column convenience - superior Electro-Voice-engineered components and premium materials deliver best-in-class sound quality, power and reliability
• No need to bring additional gear to the gig - onboard eight-channel digital mixer with prograde preamps and studio-quality effects
• Easily expand your PA - use QuickSmart Link to connect two EVOLVE 50Ms via a network cable - double your mic/line inputs and mix the whole band via the QuickSmart Mobile app
• The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format
• Perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Product Specifications

General

• Frequency response (-3 dB)1:  43 Hz to 20 KHz
• Frequency range (-10 dB)1:  37 Hz to 20 KHz
• Maximum SPL2:  127 dB
• Coverage (H x V):  120° x 40°
• Amplifier rating:  1000 W
• LF channel rating:  500 W
• HF channel rating:  500 W
• Crossover frequency:  200 Hz
• Connectors:
  • 4x XLR/TRS Combo Jack Line / Mic Input
  • 1x 1/4" TRS HI-Z input
  • 2x XLR/TRS Combo Jack for Stereo Line Input
  • 1x Stereo RCA Input
  • 1x 3.5 mm Stereo Input
  • 1x Wireless Stereo Bluetooth® Audio Input
  • 1x 1/4" Foot Switch Input
  • 1x XLR MIX OUT Output
  • 1x XLR AUX OUT Output
  • 1x RJ45 QuickSmart-Link connector
• Frequency Band:  2402 MHz to 2480 MHz
• Transmitter Power:  EIRP:4.8 dBm
• Power consumption3:  100-240 V AC, 50-60 Hz, 1.5-0.6 A

Physical

• Materials
  • Enclosure: Sub: 15 mm plywood
  • Column: Composite
  • Pole: Aluminium
  • Grille: Steel with black or white powder coat
• Colour: Black or white
• Dimensions
  • Dimensions (HxWxD) - mm (in)
    • Subwoofer: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
    • Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
    • Sub pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
  • Assembled dimensions (HxWxD) - mm (in): 2045 x 345 x 471 (80.5 x 13.6 x 18.5)
• Weight
  • Net weight: Subwoofer: 20.3 kg (44.66 lb)
  • Column: 4.7 kg (10.34 lb)
  • Pole: 1.25 kg (2.75 lb)
  • Subwoofer cover: 0.4 kg (0.9 lb)
  • Bag for column and pole: 0.85 kg (1.87 lb)
• Shipping Weight
  • Shipping weight (sub box): 23 kg (50.71 lb)
  • Shipping weight (column box): 8.3 kg (18.30 lb)

1 - Half-space measurement using live DSP preset.

2 - Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3 - Current rating is 1/8 power.
