EVOLVE-WMK-PW Wall Mount Kit Phoenix Connectors for EVOLVE Wht

« return to previous page
Electro-Voice EVOLVE-WMK-PW Wall Mount Kit Phoenix Connectors for EVOLVE Wht - Main Image
Price:
RRP: £150.00 inc VAT
Code:
ELEEWMCPW
Manufacturer Code:
F.01U.392.642
Brand:
Electro-Voice

Quantity required:

Main Features

  • Innovative mounting system for quick, simple, and reliable installations of EVOLVE column speakers.
  • Sturdy wall mount bracket with 15 degrees of downward tilt, and 45 degrees, each way, of left and right adjustment.
  • Subwoofer and column adapters with internally secured PCB screw terminal blocks.
  • Compatible with EVOLVE 30M , EVOLVE 50 and EVOLVE 50M column speakers
  • Suggested to use correctly rated speaker cable for installation: wire gauges 1.5 mm2 - 2.5 mm2 (AWG16-AWG14)
  • Finish: White
Share:

EVOLVE Wall Mount Kit Phoenix-Style Connectors White

The EVOLVE-WMK is used to suspend EVOLVE 30M, EVOLVE 50 and EVOLVE 50M column speakers remotely from the subwoofer and without the distance pole. Electro-Voice strongly recommends that loudspeakers be suspended taking into account all current national, federal, state and local laws and regulations. Suspending any object is potentially dangerous. Only individuals who have thorough knowledge of the techniques and regulations of suspending objects overhead should attempt to suspend loudspeakers. The wall mount kit is available in both black and white colours to match the EVOLVE columns speaker system and the venue.

The Electro-Voice EVOLVE Wall Mount Kit provides users the flexibility to mount the EVOLVE column speaker remotely from the subwoofer and without the distance pole. This provides a safe method for mounting the column speakers higher than the distance pole allows and remote locating the subwoofer for aesthetic or acoustic purposes.

Product Features

  • Innovative mounting system for quick, simple, and reliable installations of EVOLVE column speakers.
  • Sturdy wall mount bracket with 15 degrees of downward tilt, and 45 degrees, each way, of left and right adjustment.
  • Subwoofer and column adapters with internally secured PCB screw terminal blocks.
  • Compatible with EVOLVE 30M , EVOLVE 50 and EVOLVE 50M column speakers
  • Suggested to use correctly rated speaker cable for installation: wire gauges 1.5 mm2 - 2.5 mm2 (AWG16-AWG14)
  • Finish: White

Product Specifications

  • Connector type:  Phoenix (removable screw connector)
  • Usage:  Indoor
  • Colour:  White
  • Dimension (H x W x D):  80 mm x 400 mm x 400 mm
  • Dimension (H x W x D):  3.1 in. x 15.75 in. x 15.75 in.
  • WLL:  5 kg (11lb)
  • Weight:  1.35 kg (3lb)
  • Shipping weight:  1.80 kg (4lb)

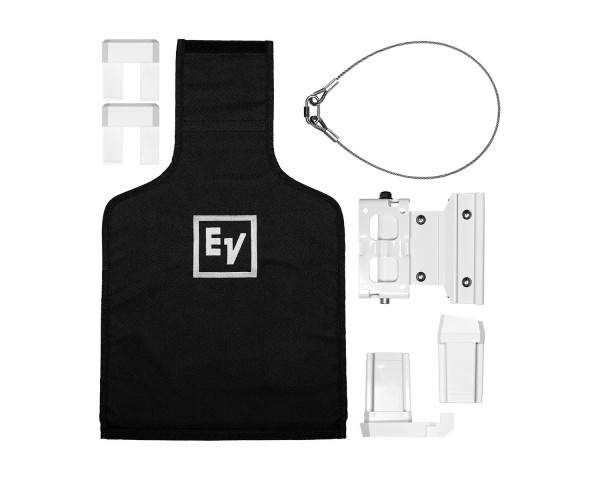

What's in the Box?

  • Wall mount bracket x 1
  • Subwoofer amplifier and input cover x 1
  • Column speaker adapter x 1
  • Subwoofer adapter x 1
  • Secondary auxiliary support cable x 1
  • Installation manual x 1
  • Rubber grommets x 2
