EW-D 835-S Wireless Handheld Mic System (S1-7) CH38

« return to previous page

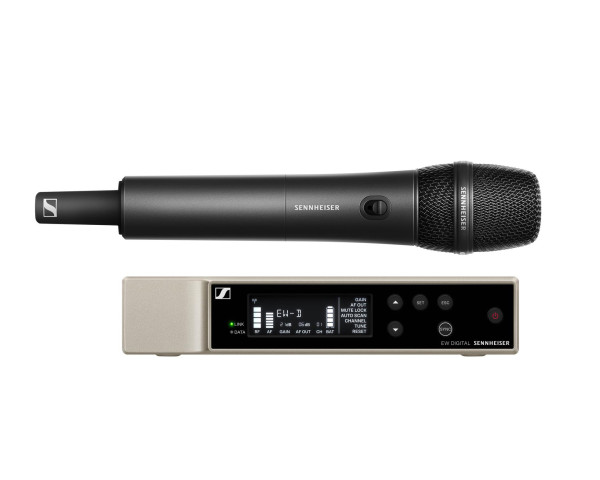

Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38 - Main Image
Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38 - Image 1
Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38 - Image 2
Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38 - Image 3
Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38 - Image 4
Price:
RRP: £742.80 inc VAT
Code:
SENEWD83538
Manufacturer Code:
508753
Brand:
Sennheiser

Quantity required:

Main Features

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
Share:

Evolution Wireless Digital 835-S Wireless Handheld Mic System (S1-7) CH38

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Product Features

  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus
  • Automated setup creates reliable connections with minimal time and effort
  • Up to 2,240 selectable frequencies
  • Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
  • 56 MHz Bandwidth will allow for up to 90 channels
  • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

Product Specifications

System

  • Audio link frequency ranges
    • S1-7:  606.2 - 662 MHz
    • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
  • Audio frequency response:  20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD:  ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity:  5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

  • Input voltage:  11 - 13 V ⎓
  • Input current:  ≤ 300 mA
  • Transmit power (radiated):  BLE: max. 10 mW EIRP
  • Audio output power:  18 dBu max.
  • Dimensions:  212 x 44 x 189 mm
  • Weight approx.:  1000 g (without antennas and power supply)

EW-D SKM-S (Handheld Transmitter)

  • Input voltage:  2.0 - 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):  Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP); BLE: max. 10 mW EIRP
  • Dimensions (ø x l):
    • 50 x 268 mm (incl. MMD 835 microphone module)
    • 40 x 200 mm (without microphone module)
  • Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module), approx. 195 g (without microphone module)

MMD 835 (Microphone Module)

  • Transducer principle:  dynamic
  • Sensitivity:  2.1 mV/Pa
  • Sound pressure level:  154 dB SPL
  • Pick-up pattern:  cardioid

Set in packaging

  • Dimensions:  405 x 350 x 73 mm
  • Weight:  2.8 kg

What’s in the Box?

  • EW-D EM rack receiver
  • EW-D SKM-S handheld transmitter
  • MMD 835 microphone module
  • MZQ 1 microphone clamp
  • 2 rod antennas
  • Power supply with country adapters
  • Rackmount set
  • 4 rubber feet
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
  • 2 AA Batteries
