EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz

« return to previous page

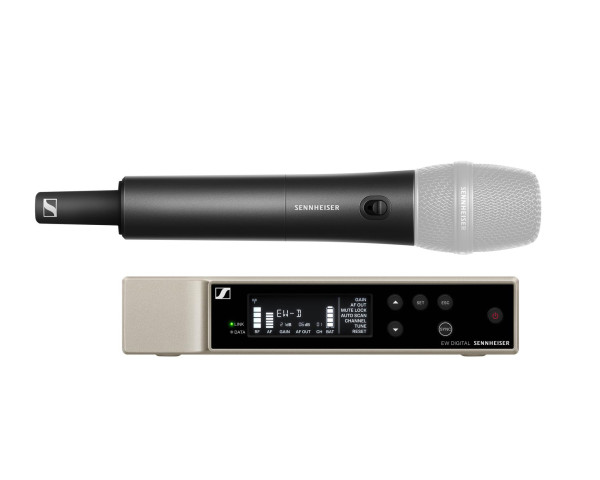

Sennheiser EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz - Main Image

Sennheiser EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz - Image 1

Sennheiser EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz - Image 2

Sennheiser EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz - Image 3

Sennheiser EW-D SKM-S Base Set Handheld System EXC Capsule (Y1-3) 1.8GHz - Image 4

Price:: RRP: £598.80 inc VAT
Code:: SENEWDSKMS18
Manufacturer Code:: 508769
Brand:: Sennheiser

Main Features

Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)

Full Description

Sennheiser Evolution Wireless Digital SKM-S Wireless Handheld Base Mic System (Y1-3) 1.8GHz

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

With a metal housing, the robust handheld transmitter suits perfectly for daily use on stage.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Features

Product Features

Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
56 MHz Bandwidth will allow for up to 90 channels
Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

Technical Specs

Product Specifications

System

Audio link frequency ranges
- S1-7: 606.2 - 662 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- Y1-3: 1785.2 - 1799.8
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

Input voltage: 11 - 13 V ⎓
Input current: ≤ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm
Weight approx.: 1000 g (without antennas and power supply)

EW-D SKM-S (Handheld Transmitter)

Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP); BLE: max. 10 mW EIRP
Dimensions (ø x l):
- 50 x 268 mm (incl. MMD 835 microphone module)
- 40 x 200 mm (without microphone module)
Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module), approx. 195 g (without microphone module)

Set in packaging

Dimensions: 405 x 350 x 73 mm
Weight: 2.8 kg

Accessories

What’s in the Box?

EW-D EM rack receiver
EW-D SKM-S handheld transmitter
MZQ 1 microphone clamp
2 rod antennas
Power supply with country adapters
Rackmount set
4 rubber feet
Quick guide
Safety guide
Manufacturer declaration sheet
2 AA Batteries
