EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38

« return to previous page

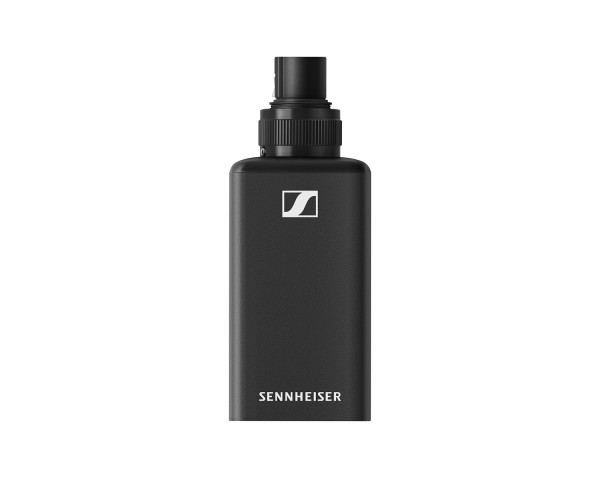

Sennheiser EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38 - Main Image
Sennheiser EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38 - Image 1
Sennheiser EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38 - Image 2
Sennheiser EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38 - Image 3
Price:
RRP: £370.80 inc VAT
Code:
SENEWDPSKP38
Manufacturer Code:
700083
Brand:
Sennheiser

Quantity required:

Main Features

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver (SKP up to 6h)
  • Magnetically stackable components for versatile mounting
Share:

EW-DP SKP Portable Wireless Mic System Transmitter (S1-7) CH38

Digital UHF XLR plug-on transmitter featuring +48V phantom power, microSD card slot, and 3.5 mm lav mic input for use with Evolution Wireless Digital.

Product Features

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver (SKP up to 6h)
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
  • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

Product Specifications

System

  • Audio link frequency ranges:
    • Q1-6:  470.2 - 526 MHz
    • R1-6:  520 - 576 MHz
    • R4-9:  552 - 607.8 MHz
    • S1-7:  606.2 - 662 MHz
    • S4-7:  630 - 662 MHz
    • S7-10:  662 - 693.8 MHz
    • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    • V3-4:  925.2 - 937.3 MHz
    • Y1-3:  1785.2 - 1799.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
  • Audio frequency response:  20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD:  ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic range:  134 dB
  • System latency:  1.9 ms
  • Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity:  5 - 95 % (non-condensing)

EW-DP SKP

  • Input voltage:  ~ 2.0 - 4.35 V
  • Input current:  < 300 mA / (without record and P48)
  • Power Supply:  2x AA batteries 1.5V or BA70 rechargeable battery pack
  • Transmit power:
    • Audio link: 10 mW ERP
    • BLE: max. 10 mW EIRP
  • Audio output power:  < 2 dBV max. (high level) / < 4dBU max (high level)
  • Output power XLR:  max. 10 mA
  • Dimensions: 108 x 42 mm
  • Weight (without batteries):  ca. 163 g (0.36 lbs)

What's in the Box?

  • EW-DP SKP digital plug-on transmitter
  • 2 AA batteries
