EW-DX SKM-S Handheld Transmitter Switch No Capsule (S1-10) CH38

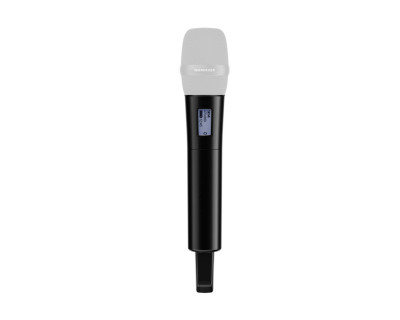

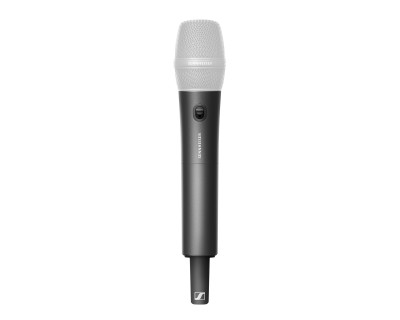

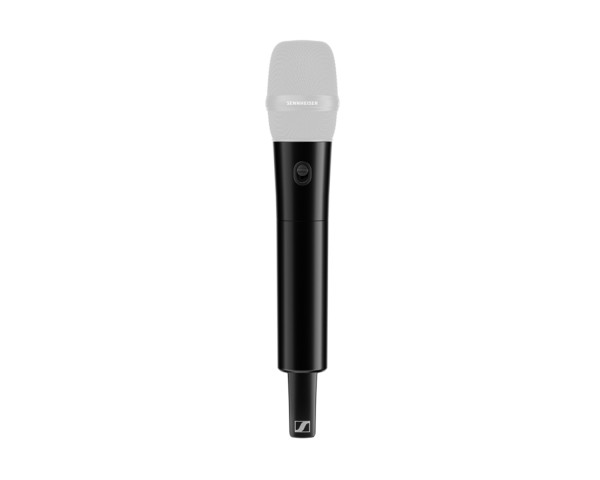

Sennheiser EW-DX SKM-S Handheld Transmitter Switch No Capsule (S1-10) CH38 - Main Image

Price:: RRP: £466.80 inc VAT
Code:: SENEWDXSKMS38
Manufacturer Code:: 509414
Brand:: Sennheiser

Main Features

10mW RF power with up to 100m/328ft working range
Charging contacts for in-device charging with CHG 70N
Persistent eInk display - parameters visible on screen even when device is not powered on
Programmable mute switch - customize the device depending on your professional needs
Function buttons - control all the transmitter settings directly from handheld microphone
Extended runtime with lithium-ion batteries - up to 12 hours operation time

Full Description

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.

Features

Product Features

10mW RF power with up to 100m/328ft working range
Charging contacts for in-device charging with CHG 70N
Persistent eInk display - parameters visible on screen even when device is not powered on
Programmable mute switch - customize the device depending on your professional needs
Function buttons - control all the transmitter settings directly from handheld microphone
Extended runtime with lithium-ion batteries - up to 12 hours operation time
Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
Mic input trim control
Metal housing

Technical Specs

Product Specifications

System

Audio link frequency ranges:
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- S1-10: 606.2 - 693.8 MHz
- S2-10: 614.2 - 693.8 MHz
- S4-10: 630 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- X1-6: 1350.2 - 1398.8 MHz
- X9-18: 1435.2 - 1524.8 MHz
- Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB)
Audio THD:
- ≤ -60 dB for 1 kHz
- @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature:
-10 °C - +55 °C
(14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)

EW-DX SKM (Handheld Transmitter)

Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
Dimensions (ø x l)
- (incl. MMD 835 microphone module): 50 x 268 mm (1.97" x 10.55")
- (without microphone module): 40 x 200 mm (1.57" x 7.87")
Weight (without batteries):
- (incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
- (without microphone module): approx. 195 g (7.14 lbs)
