Exo-Pod Passive Line-Level Broadcast Splitter

« return to previous page

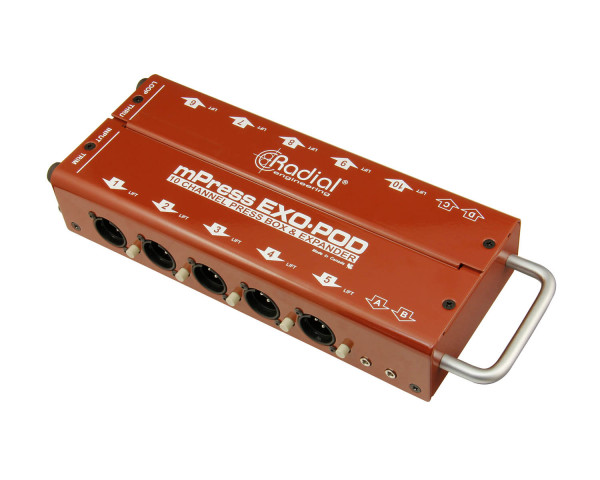

Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Main Image
Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Image 1
Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Image 2
Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Image 3
Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Image 4
Radial Exo-Pod Passive Line-Level Broadcast Splitter  - Image 5
Price:
RRP: £485.83 inc VAT
Code:
RADEXOPOD
Manufacturer Code:
R800-8012-00
Brand:
Radial

Quantity required:

Main Features

  • Passive splitter with 14 transformer-isolated outputs
  • Set & forget trim control to adjust output levels
  • Balanced line-level XLR input can handle up to +24dB
  • Daisy-chain multiple Exo-Pods for large events
  • Audio circuit type:  Passive
  • Number of channels:  14 outputs
Share:

Exo-Pod Passive Line-Level Broadcast Splitter

The Exo-Pod take a line-level XLR input and splits it cleanly to ten XLR outputs and four 3.5mm TRS jacks for connection to video cameras, hand-held recorders, tablets or other media systems. A variable input trim allows the broadcast technician to reduce the global output level locally for convenience, and all of the outputs are transformer isolated to eliminate hum and buzz that is often encountered due to ground loops. The XLR outputs are supplemented with individual ground lift switches to further abate noise, and an XLR thru connector allows multiple Exo-Pods to be linked together to provide an expandable solution to handle events of any size.

Product Features

  • Passive splitter with 14 transformer-isolated outputs
  • Set & forget trim control to adjust output levels
  • Balanced line-level XLR input can handle up to +24dB
  • Daisy-chain multiple Exo-Pods for large events

Product Specifications

  • Audio circuit type:  Passive
  • Number of channels:  14 outputs
  • Frequency response:  <20Hz to >20kHz ±1dB
  • Dynamic range:  >136dB / >100dB
  • Gain:  -3.5dB / -18dBu
  • Clip Level:  >+26dBu
  • Total harmonic distortion:  0.001%
  • Intermodulation Distortion:  0.006%
  • Phase Deviation:  -5/+25°
  • Input Impedance:  350 Ω
  • Output Impedance:  XLR: 1000 Ω | 3.5mm: 4600 Ω
  • Common Mode Rejection Ratio:  63dB
  • Equivalent Input Noise:  -108dBu/-84dBu
  • Noise:  XLR: -111dBu | 3.5mm: -86dBu

Features

  • Ground lift, Level Control
  • Input Connectors:  XLR
  • Output Connectors:  XLR, 3.5mm

General

  • Construction:  14-gauge steel chassis & outer shell
  • Size (L x W x D):  L:11.75"" x W:5" H:2.25" (298.45mm x 127mm x 57.15mm)
  • Weight:  3.6lb
  • Shipping size (L x W x D):  L:13.37" x W:5.5" H:3.25" (571.5mm x 260.35mm x 114.3mm)
  • Shipping weight:  4lb
  • Power:  Passive, no power required
  • Conditions:  For use in dry locations only between 5°C and 40°C
  • Warranty:  Radial 3-year, transferable
