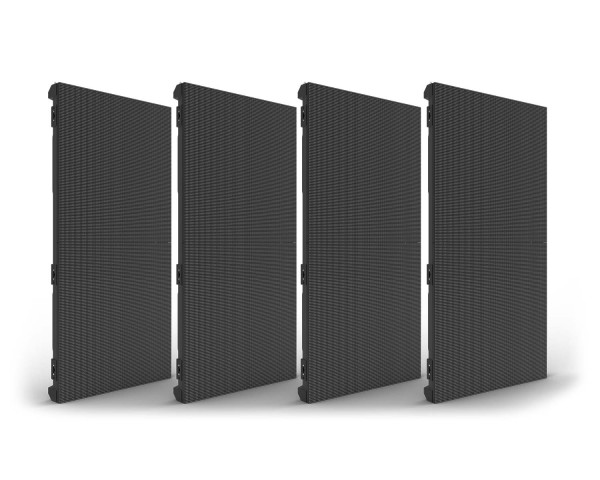

Chauvet Professional F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case) - Main Image
Chauvet Professional F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case) - Image 1
Chauvet Professional F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case) - Image 2
Chauvet Professional F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case) - Image 3
Chauvet Professional F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case) - Image 4
Price:
POA
Code:
CHAF3X
Manufacturer Code:
F3XX4
Brand:
Chauvet Professional

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • 9 mm pitch, high-resolution
  • Indoor rated video panel in convenient 1000 mm (tall) by 500 mm (wide) form factor.
  • Easily configure and drive content with the VIP Drive 10-5 Nova or the VIP Drive 83R Nova, powered by the Novastar control protocol
  • High quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar (18-bit available)
  • High performance digital LED drivers deliver 3840 Hz refresh rate and a clear, vibrant image
  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
Share:

F3X LED Video Panel 3.9mm Pixel Pitch / 1200 NITS (4x + Case)

F3X is a 3.9mm, high resolution, indoor rated video panel in a convenient 1000mm tall by 500mm wide form factor. Users can easily configure and drive content with the VIP Drive 43Nova 2 or the VIP 83R Nova, powered by the Novastar control protocol. The F3X also features high quality back body LEDS producing at 14-bit grayscale and high performance digital LED drivers that deliver a clear, vibrant image.

Product Features

  • 9 mm pitch, high-resolution, indoor rated video panel in convenient 1000 mm (tall) by 500 mm (wide) form factor.
  • Easily configure and drive content with the VIP Drive 10-5 Nova or the VIP Drive 83R Nova, powered by the Novastar control protocol
  • High quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar (18-bit available)
  • High performance digital LED drivers deliver 3840 Hz refresh rate and a clear, vibrant image
  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
  • Intelligent, high speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
  • 1,000 x 500 x 82.5 mm, 28.6 lb (13 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength, capable of hanging up to 22 panels vertically safely
  • Specialized frame design allows for overhead hanging, ground stacking, and wall mounting maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles or use the optional service tool from the front.
  • Front LED surface protective design features prevent damage when handling: specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to front or side impacts
  • Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
  • Optimized heat dissipation ensures an even colour across the F3
  • Dual power supplies increase the stability of the system
  • Ground support system, and concave curving hardware available
  • Easily replace the LED masks without tools so your display remains flat even after mishandling

Product Specifications

Optical

  • Light Source: 32,768 LEDs (tri-colour RGB) SMD 2121, 50,000 hours life expectancy
  • Color Wavelength: red (620 to 625 nm), green (512 to 532 nm), blue (460 to 475 nm)
  • Viewing Angle (H/V): 140°/110°
  • Calibrated Illuminance: 1000 NITS
  • Maximum Illuminance: 1200 NITS
  • Contrast Ratio: 3000:1
  • Grayscale : 14-bit
  • Drive Type : 1/16
  • Receiver Card : A5s Plus E
  • Pixels: 128 x 256
  • Pixel Pitch: 3.9 mm
  • Minimum Viewing Distance: 10ft (3m)
  • Pixel Density: 65,536/m2
  • Display Refresh Rate: 3,840 Hz (S-PWM)

Construction/Physical

  • Dimensions: 19 x 39 x 2.5 in (500 x 1000 x 64 mm)
  • Weight: 30 lb (13.6 kg)
  • Exterior Colour: Black
  • Housing Material: Magnesium die-cast
  • Maximum vertical hang: 23 panels
  • Maximum horizontal hang: 17 panels

Connections

  • Power Connection: Edison (Local) plug to Seetronic etherKON IP65
  • Power Input: Seetronic etherKON IP65
  • Power Output: Seetronic etherKON IP65
  • Data Connectors: Seetronic etherKON IP65
  • Cable Length (signal extension): 4 ft (1.2 m)
  • Cable Length (power): 6 ft (1.8 m)
  • Cable Length (power extension): 6 ft (1.8 m)

Control Protocol: Novastar

  • Maximum Panels per VIP Drive 43Nova 2:
    • 20/port, 60/Drive (4 ports), 1920x1080 @ 60 Hz
    • 20/port, 75/Drive (4 ports), 1920 x 1280 @ 30/50 Hz
    • 20/port, 80/Drive (4 ports), 1920 x 1536 @ 30 Hz
    • Note: may load up to 80 panels/drive at any resolution if overlapping video content
    • Note: increasing refresh rate reduces port capacity
    • Note: Adding mapping space between panels reduces port capacity
  • Maximum Panels per VIP Drive 83R Nova:
    • 20/port, 90/Drive (8 ports), 1920 x 1536 @ 30 Hz
    • 20/port, 120/Drive (8 ports), 3840x1080 @ 30 Hz
    • Note: may load up to 160 panels/drive at any resolution if overlapping video content
    • Note: increasing refresh rate reduces port capacity
    • Note: Adding mapping space between panels reduces port capacity
  • Maximum Panels per VIP Drive 10-5 Nova:
    • 20/port, 120/Drive (10 ports), 3840x1080 @ 60 Hz
    • 20/port, 180/Drive (10 ports), 3840x2160 @ 30 Hz
    • Note: may load up to 200 panels/drive at any resolution if overlapping video content
    • Note: increasing refresh rate reduces port capacity
    • Note: Adding mapping space between panels reduces port capacity
  • Maximum Panels Wide per VIP Drive 43 Nova 2:
    • 15 @ 1920 wide resolution
  • Maximum Panels Wide per VIP Drive 83R Nova:
    • 30 @ 3840 wide resolution
  • Maximum Panels Wide per VIP Drive 10-5 Nova:
    • 30 @ 3840 wide resolution
  • Maximum Panels Tall per VIP Drive 43 Nova 2 (adjust input/source resolution):
    • 3: 1920 x 1080 @ 30/50/59.94/60 Hz
    • 4: 1920 x 1080 @ 60 Hz
    • 4: 1920 x 1280 @ 30/50 Hz
    • 5: 1920 x 1080 @ 30/50 Hz
    • 6: 1920 x 1080 @ 30 Hz
    • 6: 1920 x 1536 @ 30 Hz
  • Maximum Panels Tall per VIP Drive 83R Nova (adjust input/source resolution):
    • 3: 1920 x 1080 @ 30/50/59.94/60 Hz
    • 4: 3840 x 1080 @ 60 Hz
    • 4: 1920 x 1280 @ 30/50 Hz
    • 5: 3840 x 1080 @ 30/50 Hz
    • 6: 1920 x 1536 @ 30 Hz
    • 6: 3840 x 1080 @ 30 Hz:
  • Maximum Panels Tall per VIP Drive 10-5 Nova (adjust input/source resolution):
    • 4: 3840 x 1080 @ 60 Hz
    • 8: 3840 x 2160 @ 30 Hz

Control

  • Control Protocol: Novastar
  • Maximum Panels/VIP Drive 43Nova 2: 30/port, 108/Drive (4 ports) (may load up to 120 panels/drive if overlapping video content)
  • Maximum Panels/VIP Drive 83R Nova: 30/port, 216/Drive  (8 ports) (may load up to 240 panels/drive if overlapping video content)
  • Maximum Panels Wide/VIP Drive 43 Nova 2: 18 @ 1920 wide resolution
  • Maximum Panels Wide/VIP Drive 83R Nova: 36 @ 3840 wide resolution
  • Maximum Panels Tall/ VIP Drive 43 Nova 2: 6 @ 60Hz
  • Maximum Panels Tall/ VIP Drive 83R Nova: 6 @ 60Hz

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
  • Power and Current: 305 W, 2.54 A @ 120 V, 60 Hz
  • Power and Current: 305 W, 1.46 A @ 208 V, 60 Hz
  • Power and Current: 305 W, 1.32 A @ 230 V, 50 Hz

Certifications/Qualifications

  • CE, MET, FCC, RoHS, UKCA
  • IP Rating: IP20, dry location
  • MET Listing Number: E114016
  • US Safety: UL 62368-1
  • Canadian Safety: CSA C22.2 No. 62368-1
  • IP Rating: IP31, dry location
  • Thermal Dissipation @120V: 1040.70 BTU per hour
  • Thermal Dissipation @ 208V: 1040.70 BTU per hour
  • Thermal Dissipation @ 230V: 1040.70 BTU per hour
  • Temperature (Ambient): -4 °F to 104 °F (-20 °C to 40 °C)

What's in the Box?

  • 4 x F3X
  • 1 x Road case
  • 1 x Seetronic powerKON® IP65 power cord
  • 4 x Seetronic powerKON® IP65 power linking cords
  • 4 x Seetronic etherKON® IP65 signal linking cords
  • 5 x Spare masks
