Flex Pixel P14WP Flexible Pixel Tape 144 RGB SMD LEDs 2m IP65

« return to previous page

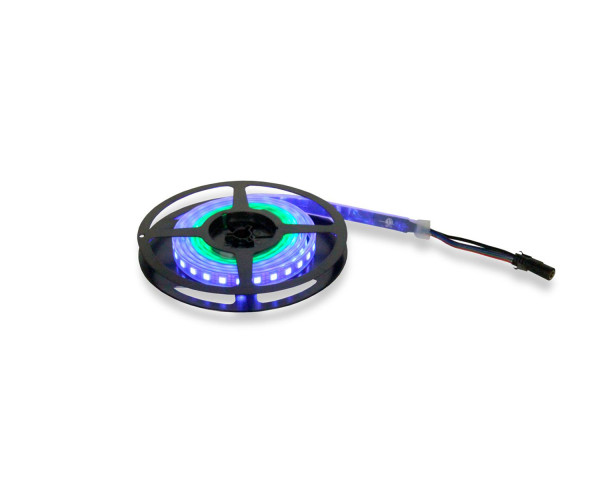

Elation Flex Pixel P14WP Flexible Pixel Tape 144 RGB SMD LEDs 2m IP65 - Main Image
Price:
RRP: £144.00 inc VAT
Code:
ELA0090
Manufacturer Code:
1236300086
Brand:
Elation

Quantity required:

Main Features

  • IP65 Outdoor Rated Flexible LED Pixel Tape
  • 6.6 feet (2m) Roll
  • (144) RGB Tri-Colour SMD LED Pixels
  • (432) Total DMX Channels
  • Pixels Spaced on 0.55” (14mm) Centres
  • Cut and Extend Every 2” (51mm)
Share:

Flex Pixel P14WP Flexible Pixel Tape 144 RGB SMD LEDs 2m IP65

The FLEX PIXEL P14WP™ is an outdoor-rated 6.6 foot (2m) flexible LED pixel tape featuring (144) RGB SMD tri-colour LED pixels (432 total DMX channels) spaced on 0.55” (14mm) centres, producing over 1 billion colour possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 2” (51mm), and mountable to most surfaces.

Each FLEX PIXEL P14WP tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto-switching power supply (110-240v), and can be controlled using one of Elation’s optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.

Product Features

  • IP65 Outdoor Rated Flexible LED Pixel Tape
  • 6.6 feet (2m) Roll
  • (144) RGB Tri-Colour SMD LED Pixels
  • (432) Total DMX Channels
  • Pixels Spaced on 0.55” (14mm) Centres
  • Cut and Extend Every 2” (51mm)
  • 120° Viewing Angle
  • Over 1 Billion Colour Possibilities

Product Specifications

Source

  • (144) RGB SMD LED Pixels
  • 50,000 Hour Average LED Life



Colour

  • Over 1 Billion Colour Possibilities

Control

  • (432) DMX Channels
  • ICS APA102 Protocol

Electrical / Thermal

  • DC 5V
  • 29W Max Power Consumption

Size / Weight

  • Length:  6.6’ (2m) Roll
  • Width:  0.57” (14.5mm)
  • Vertical Height:  0.18” (4.5mm)
  • Weight:  0.66 lbs (0.3 kg)
