GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node

« return to previous page

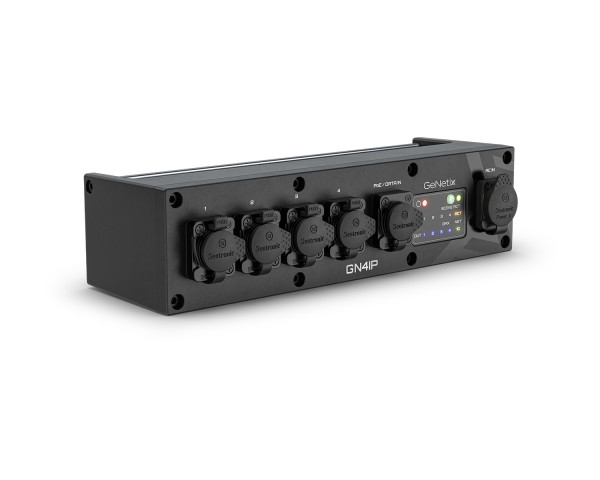

ChamSys GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node - Main Image
ChamSys GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node - Image 1
ChamSys GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node - Image 2
ChamSys GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node - Image 3
ChamSys GeNetix GN4IP IP65 RATED 4-Port Ethernet to DMX Node - Image 4
Price:
RRP: £780.00 inc VAT
Code:
CHSGN4IP
Manufacturer Code:
CS300067
Brand:
ChamSys

Quantity required:

Main Features

  • COMING SOON!
  • 4 RDM DMX Ports supporting Input and Output
  • Supports Art-Net & sACN
  • IP65 Rated
  • Webserver for remote configuration
  • Can be Mains or PoE powered
  • Webserver for remote configuration
Share:

GeNetix GN4IP 4-Port Ethernet to DMX Node IP65

GeNetix Node 4 IP is a compact IP65-rated 4-port Ethernet-to-DMX Node that comes with multiple rigging options for easily mounting in your rig. Featuring 1 Network Port and 4 DMX Outputs that can be used as either DMX In or Out, Port Status LEDs, and the ability to be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This rugged and versatile device can be configured remotely over network via either its inbuilt Webserver, RDM or a ChamSys Console.

Product Features

  • 4 RDM DMX Ports supporting Input and Output
  • Supports Art-Net & sACN
  • IP65 Rated
  • Webserver for remote configuration
  • Can be Mains or PoE powered
  • Webserver for remote configuration
  • Full Unlock of up to 2 MagicQ Instances when connected via Network
  • M12 Threaded Insert for Clamp Mounting
  • Built in Rail for secondary Safety bond when rigged

Product Specifications

Hardware Specifications

  • RDM Direct DMX Ports:  4
  • Network Ports:  1
  • Mains Input:  PowerCon True1 Top
  • Can be PoE Powered:  Yes
  • Port Status LEDs:  Yes
  • M12 Clamp Fixing:  Yes
  • Safety Bond Fixing Rail:  Yes

Software Specifications

  • Art-Net/sACN:  Yes
  • ChamNet Support:  Yes
  • Configurable DMX Timings:  Yes
  • Web Server:  Yes
  • DMX Redundancy Support:  Yes
  • User Scene Store:  Yes

Weight and Dimensions

  • Width:  274mm (10.81 inches)
  • Depth:  76mm (3,0 inches)
  • Height:  68mm (2.68 inches)
  • Weight:  1.40 KG (3.09 lb)

What's in the Box?

  • Neutrik powerCON TRUE1 Power Cable:  1
