GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch

« return to previous page

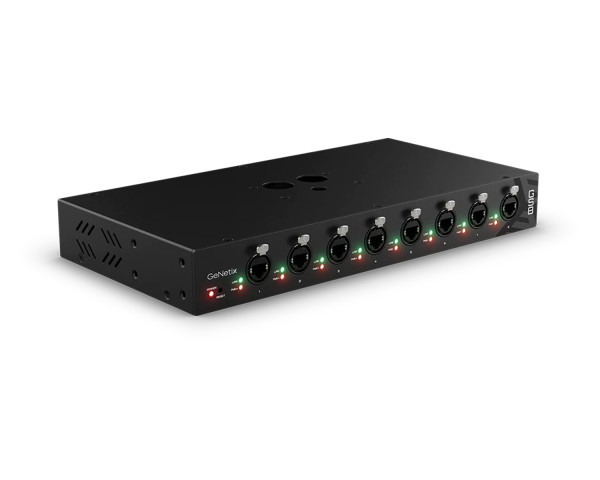

ChamSys GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch - Main Image
ChamSys GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch - Image 1
ChamSys GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch - Image 2
ChamSys GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch - Image 3
ChamSys GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch - Image 4
Price:
RRP: £720.00 inc VAT
Code:
CHSGS8
Manufacturer Code:
CS300066
Brand:
ChamSys

Quantity required:

Main Features

  • 200w 8 port Unmanaged Gigabit PoE Network Switch
  • Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
  • Ports 1-4 Support PoE++ (up to 100w per port), Ports 5-8 PoE+ (up to 30w per port) up to 200w switch limit
  • Locking Ethernet Connectors
  • PowerCon True1 Top Mains Input
  • Desktop or 19” Rack Mountable (1U)
Share:

GeNetix GS8 8-Port PoE Unmanaged Gigabit Network Switch

GeNetix Switch 8 is an eight-port unmanaged Gigabit PoE network switch that provides a total output of up to 200W of Power over Ethernet across its 8 ports. Ports 1-4 support IEEE 802.3bt up to 100W per port. In modes A & B, all ports support 802.3af and 802.3at standards. This rack mountable switch features a rear PowerCon True1 Mains input connector and is also truss mountable via its M12 threaded insert.

Product Features

  • 200w 8 port Unmanaged Gigabit PoE Network Switch
  • Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
  • Ports 1-4 Support PoE++ (up to 100w per port), Ports 5-8 PoE+ (up to 30w per port) up to 200w switch limit
  • Locking Ethernet Connectors
  • PowerCon True1 Top Mains Input
  • Desktop or 19” Rack Mountable (1U)
  • M12 Threaded Insert for Clamp Mounting

Product Specifications

Hardware Specifications

  • Network Ports:  8
  • Mains Input:  PowerCon True1 Top
  • Port Status LEDs:  Yes
  • 802.3af and 802.3at in Modes A & B:  Yes
  • 802.3bt up to 100W per Port:  Ports 1-4
  • Removable Rack Ears:  Yes

Software Specifications

  • Gigabit Ethernet:  Yes
  • Unmanaged Network Switch:  Yes

Included Accessories

  • Neutrik powerCON TRUE1 Power Cable:  1

Physical & Dimensions

  • Width (No Rack Ears):  330mm (12.99 inches)
  • Width (With Ears):  482mm (18.98 inches)
  • Depth:  172mm (6.77 inches)
  • Height:  43mm (1.69 inches)
  • Weight:  2.05 KG (4.52 lb)

What's in the Box?

  • Neutrik powerCON TRUE1 Power Cable x 1

Product Downloads
