GS60 5.25" Coaxial Garden Speaker 60W 100V IP56

« return to previous page

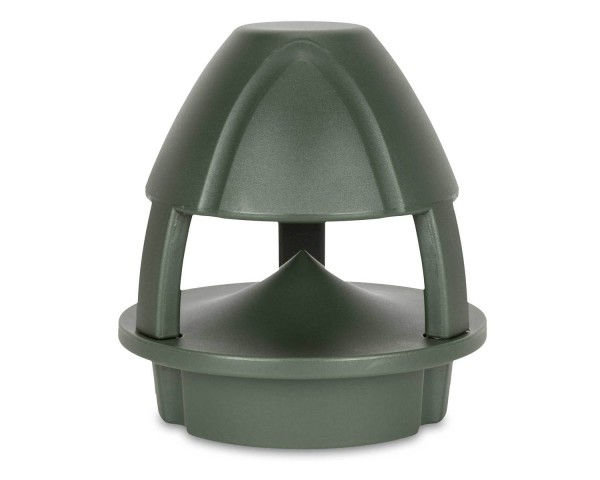

RCF GS60 5.25 Coaxial Garden Speaker 60W 100V IP56 - Main Image
Price:
RRP: £315.60 inc VAT
Code:
RCFGS60
Manufacturer Code:
13133084
Brand:
RCF

Quantity required:

Main Features

  • GS60 Outdoor Speaker
  • Body made of linear low-density polyethylene
  • Coaxial transducer
  • Suitable for installation on different surfaces
  • Can be used in constant voltage lines or in low impedance
  • Protection grade IP56
Share:

GS60 5" Coaxial 100V/70V Acoustic Diffuser for Outdoors IP56

GS 60 is an outdoor speaker suitable for gardens that includes a 5” coaxial loudspeaker and an internal transformer for 100V / 70V constant voltage lines. GS 60 can be placed on several surfaces, such as wood, concrete or into the ground.

Product Features

  • GS60 Outdoor Speaker
  • Body made of linear low-density polyethylene
  • Coaxial transducer with 5,25" woofer and 1,20'' tweeter
  • Suitable for installation on different surfaces
  • Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)
  • Protection grade IP56

Product Specifications

General

  • Acousticalspecifications
    • FREQUENCY RESPONSE (-10DB): 60 Hz ÷ 20000 Hz
    • MAX SPL @ 1M: 111 dB
    • SYSTEM SENSITIVITY: 90 dB
  • Power section
    • NOMINAL IMPEDANCE (OHM): 8 ohm
    • POWER HANDLING: 60 W RMS
    • PEAK POWER HANDLING: 240 W PEAK
    • RECOMMENDED AMPLIFIER: 120 W
  • Transducers
    • DOME TWEETER: 1.3''
    • WOOFER: 5.5''
  • Input/Output section
    • CONSTANT VOLTAGE TRANSFORMER: 70/100 V
    • POWER SELECTION 1 (100 V): 32 W - 313 ohm
    • POWER SELECTION 2 (100 V): 16 W - 625 ohm
    • POWER SELECTION 3 (100 V): 8 W - 1250 ohm
    • POWER SELECTION 4 (100 V): 4 W - 2500 ohm
    • POWER SELECTION 5 (100 V): 2 W - 5000 ohm
    • POWER SELECTION 6 (100 V): 1 W - 10000 ohm
  • Standard compliance
    • IP PROTECTION GRADE: IP 56
    • CE MARKING: Yes
  • Physical specifications
    • CABINET/CASE MATERIAL: PE Low Density
    • COLOR: Green

Physical & Dimensions

  • Height: 409mm
  • Diameter: 365mm

Product Downloads
