GSF6 6.5

JBL GSF6 6.5 2-Way Ground-Stake Landscape Loudspeaker 50W 100V Green - Image 2

Price:: RRP: £402.00 inc VAT
Code:: JBLGSF6G
Manufacturer Code:: JBL2127
Brand:: JBL

Main Features

Frequency range: 65 Hz–20 kHz
Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
Multi-tap 30W switchable transformer for 8Ω direct operation or use in 70V/100V systems
IP66 rated against water and dust ingress
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers

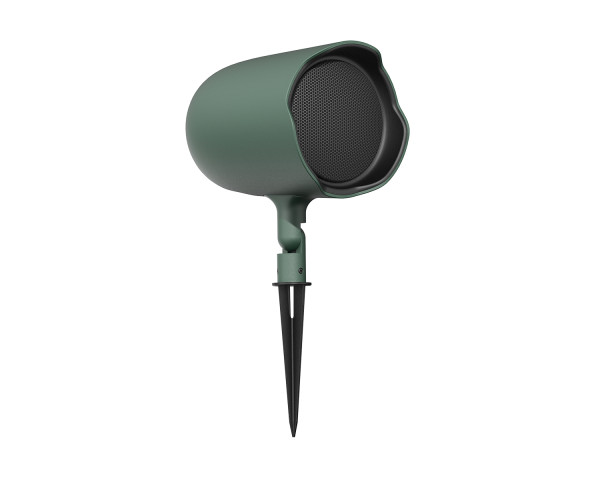

GSF6 6.5" 2-Way Ground-Stake Landscape Loudspeaker 50W 100V Green

The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF6—winner of the prestigious RedDot international design award for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Product Features

Transducers: 165 mm (6.5”) woofer with polypropylene cone and 25 mm (1”) voice coil on aluminum voice coil former; 25 mm (1.0”) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
Frequency range: 65 Hz–20 kHz
Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
Multi-tap 30W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
IP66 rated against water and dust ingress
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge
Includes ground stake and L-bracket for surface mounting
Includes tap selector located on bottom of speaker, away from water incursion
UL1480A listed
Finish: hunter green

Product Specifications

Frequency Range (-10dB): 65 Hz – 20 kHz
Frequency Response (+/-3 dB): 95 Hz - 20 kHz
Power Rating:
- 100 W Continuous Program (2 hrs)
- 50 W (200 W Peak), Continuous Pink Noise (2 hrs)
- 30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity: 88 dB (ave. 2 kHz – 20 kHz)
Maximum SPL: 111 dB peak (105 dB continuous, 2 hr) @ 1m
Nominal Coverage: 70° conical
Nominal Impedance: 8 Ω (at 8Ω tap)
Transformer Taps:
- 70V: 30 W, 15 W, 7.5 W
- 100V: 30W, 15 W
Drivers:
- 165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminium voice coil former
- 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
Colour: Hunter Green RAL 6018
Dimensions: Cabinet 217mm height/diameter x 293mm depth (8.6 x 11.6 in)
Net Weight: 3.5 kg (7.7 lbs)
Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket
