HD 35-A 15" 2-Way Active Loudspeaker 90x60° 700W Black

« return to previous page

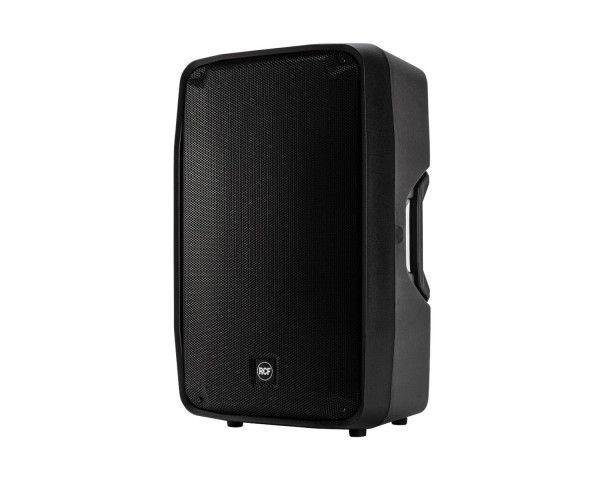

RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Main Image
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 1
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 2
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 3
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 4
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 5
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 6
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 7
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 8
RCF HD 35-A 15 2-Way Active Loudspeaker 90x60° 700W Black - Image 9
Price:
RRP: £1,185.60 inc VAT
Code:
RCFHD35A
Manufacturer Code:
13000591
Brand:
RCF

Quantity required:

Main Features

  • 132 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.4” Titanium Compression Driver, 3.0” v.c. Neodimium
  • 15” Woofer, high power
  • 800 Hz crossover point for perfect vocal reproduction
Share:

HD 35-A 15" + 3" 2-Way Active Loudspeaker 90x60° 700W Black

The titanium dome, voice coil neodymium compression driver offers unique vocal clarity and sound projection on the The titanium dome, 3.0" voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15” woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.

Product Features

  • 132 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.4” Titanium Compression Driver, 3.0” v.c. Neodimium
  • 15” Woofer, high power
  • 800 Hz crossover point for perfect vocal reproduction
  • 90°x60°, wide dispersion constant directivity horn
  • Silent Fanless Class-D Amplifier

Product Specifications

Acoustical specifications

  • Frequency Response:  45 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  132 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  60°

Transducers

  • Compression Driver:  1.4'', 3.0'' v.c
  • Woofer:  15'', 3.0'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  XLR, Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu
  • Mic. Input Sensitivity:  -32 dBu

Processor section

  • Crossover Frequencies:  800 Hz
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Volume, Boost, Mic/Line

Power section

  • Total Power:  1400 W Peak, 700 W RMS
  • High frequencies:  400 W Peak, 200 W RMS
  • Low frequencies:  1000 W Peak, 500 W RMS
  • Cooling:  Convection
  • Connections:  Powercon IN/OUT

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  PP Composite
  • Hardware:  1 x M10 top, 1 x M10 bottom, 2 x M10 side
  • Handles:  1 Top, 2 Side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black

Physical & Dimensions

  • Height:  714 mm / 28.11 inches
  • Width:  442 mm / 17.4 inches
  • Depth:  397 mm / 15.63 inches
  • Weight:  22 kg / 48.5 lbs
