HD 15-A 15" Active 2-Way Loudspeaker 90x60° 700W Black

« return to previous page

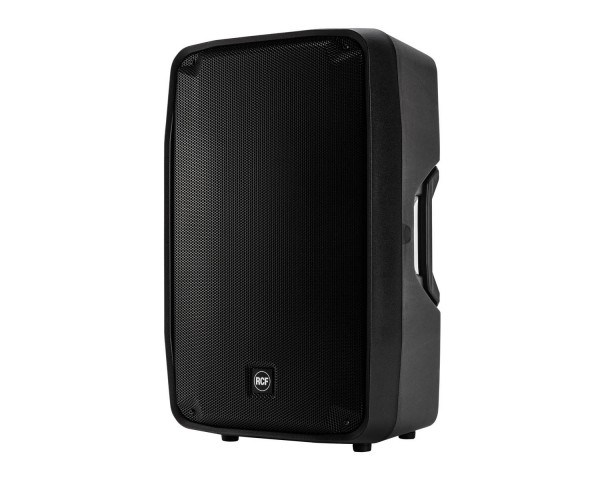

RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Main Image
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 1
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 2
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 3
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 4
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 5
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 6
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 7
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 8
RCF HD 15-A 15 Active 2-Way Loudspeaker  90x60° 700W Black - Image 9
Price:
RRP: £855.60 inc VAT
Code:
RCFHD15A
Manufacturer Code:
13000589
Brand:
RCF

Quantity required:

Main Features

  • 130 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.0" Compression Driver, 1.75” v.c.
  • 15” Woofer, high power
  • Lightweight Composite Cabinet
Share:

HD 15-A Active 2-Way Speaker 15" 90°x60° 700W - Black

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

Product Features

  • 130 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.0" Compression Driver, 1.75” v.c.
  • 15” Woofer, high power
  • Lightweight Composite Cabinet
  • 90°x60°, wide dispersion constant directivity horn
  • Silent Fanless Class-D Amplifier

Product Specifications

Acoustical specifications

  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 60°

Power section

  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: VDE

Transducers

  • Compression Driver: 1.0'', 1.75'' v.c
  • Woofer: 15'', 2.5'' v.c

Input/Output section

  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
  • Mic. Input Sensitivity: -32 dBu

Standard compliance

  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
  • Handles: 1 Top, 2 Side
  • Grille: Steel
  • Color: Black

Processor section

  • Crossover Frequencies: 1800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Boost, Mic/Line

Size

  • Height: 714 mm / 28.11 inches
  • Width: 442 mm / 17.4 inches
  • Depth: 397 mm / 15.63 inches
  • Weight: 22 kg / 48.5 lbs

Shipping information

  • Package Height: 700 mm / 27.56 inches
  • Package Width: 450 mm / 17.72 inches
  • Package Depth: 500 mm / 19.69 inches
  • Package Weight: 24.5 kg / 54.01 lbs
