HDM 45-A 15

« return to previous page

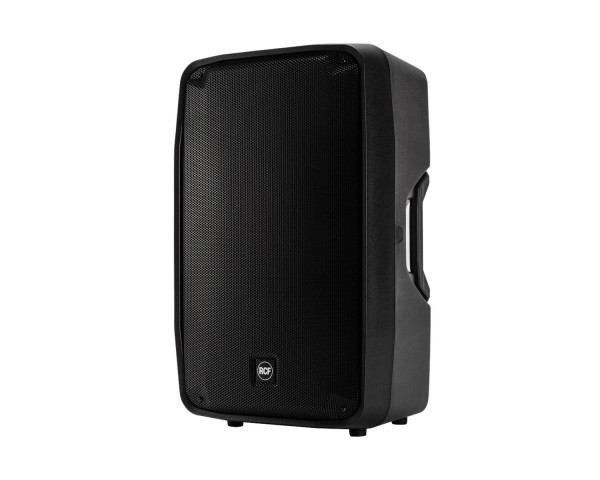

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 1

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 2

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 3

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 4

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 5

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 6

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 7

RCF HDM 45-A 15 2-Way Active Loudspeaker 90x60° 1100W Black - Image 8

Price:: RRP: £1,642.80 inc VAT
Code:: RCFHDM45A
Manufacturer Code:: 13000593
Brand:: RCF

Main Features

133 dB Max SPL
2200 Watts two-way power
Innovative DSP Processing with FiRPHASE
650 Hz crossover point for perfect vocal reproduction
15” Neodimium Woofer, 3.5” v.c.
1.4” throat Titanium Compression Driver, 4.0” v.c. Neodymium

HDM 45-A 15" 2-Way Active Loudspeaker 90x60° 1100W Black

The HDM 45-A speaker boosts the performance with a top-quality two channel amplifier, RDNet networked management, RCF precision transducers, the FiRPHASE processing, and a rugged cabinet. While being one of the most powerful speakers in composite material in its category, it delivers clear, detailed and smooth sound from low to very high levels, with low distortion and fast transient response. The HDM concept is inspired by the touring industry, packing in an elegant and lightweight cabinet the maximum reliability and strength for intensive use on the road. Perfect as a main front of house speaker in PA systems, high-powered floor monitor, or unobtrusive infill system when combined with the RCF HDL System speakers.

Product Features

133 dB Max SPL
2200 Watts two-way power
Innovative DSP Processing with FiRPHASE
650 Hz crossover point for perfect vocal reproduction
15” Neodimium Woofer, 3.5” v.c.
1.4” throat Titanium Compression Driver, 4.0” v.c. Neodymium
90°x60°, wide dispersion constant directivity horn
RDNet compatible
Silent Fanless Class-D Amplifier
Ultra-Light weight

Product Specifications

Acoustical specifications

Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Transducers Compression Driver: 1.4'' neo, 4.0'' v.c
Woofer: 15'' neo, 3.5'' v.c

Input/Output section

Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu

Processor section

Crossover Frequencies: 650 Hz
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: proces., 8 sel. presets
RDNet: Yes

Power section

Total Power: 2200 W Peak, 1100 W RMS
High frequencies: 600 W Peak, 300 W RMS
Low frequencies: 1600 W Peak, 800 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

Standard compliance

EN54-16 certified: Yes
CE compliance: Yes

Physical specifications

Cabinet/Case Material: PP Composite
Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
Handles: 1 Top, 2 Side
Pole mount/Cap: Yes
Grille: Steel
Colour: Black

Physical & Dimensions

Height: 714 mm / 28.11 inches
Width: 442 mm / 17.4 inches
Depth: 397 mm / 15.63 inches
Weight: 22 kg / 48.5 lbs
